Heater and Air Conditioning Control Bracket Replacement

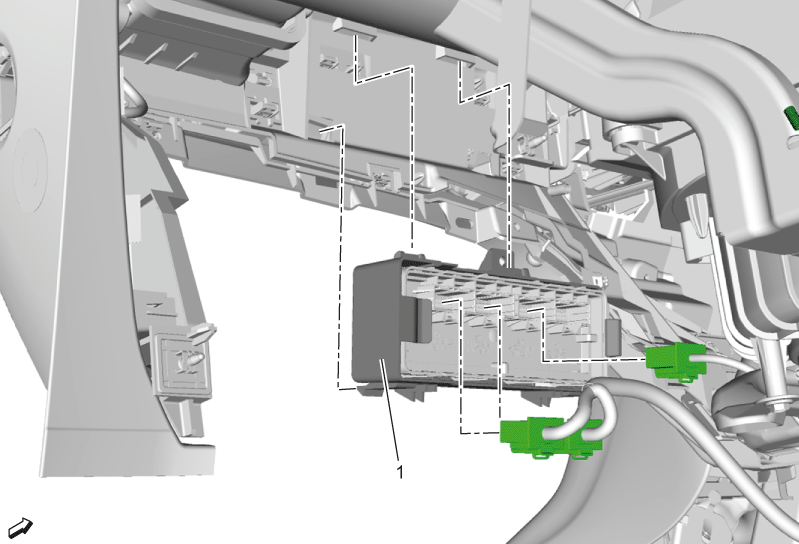

GM4377241
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Heater and Air Conditioning Control Bracket

Procedure

  1. Retainer - Unclip[4x]
  2. Disconnect the electrical connectors.
  3. Heater and Air Conditioning Remote Control Replacement - Remove
