Floor Front Air Outlet Duct Replacement - Right Side

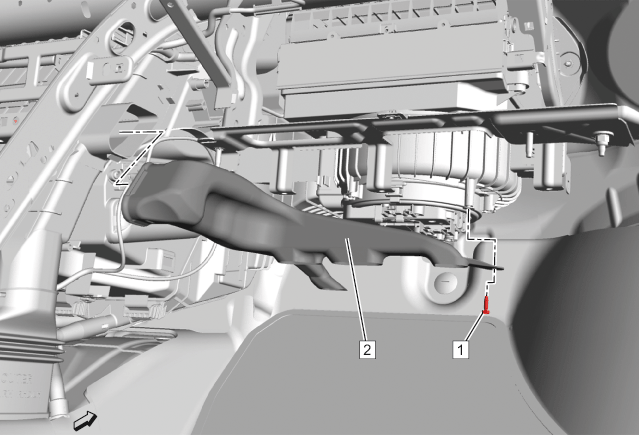

GM4421760
Callout Component Name
Preliminary Procedures
Instrument Panel Lower Trim Panel Insulator Replacement
1 Floor Front Air Outlet Duct Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Floor Front Air Outlet Duct - Right Side
