Luggage Shade Replacement

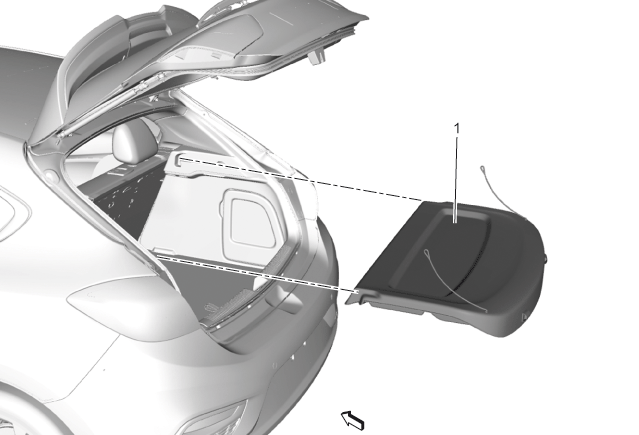

GM4377305
Callout Component Name
1 Luggage Shade

Procedure

  1. Release the luggage shade straps from the liftgate.
  2. Gently pull the luggage shade to disengage from the body lock pillar upper trim panel.
  3. Release the luggage shade from the supports.
