Radio Replacement (Hatchback - IO5 and IO6)

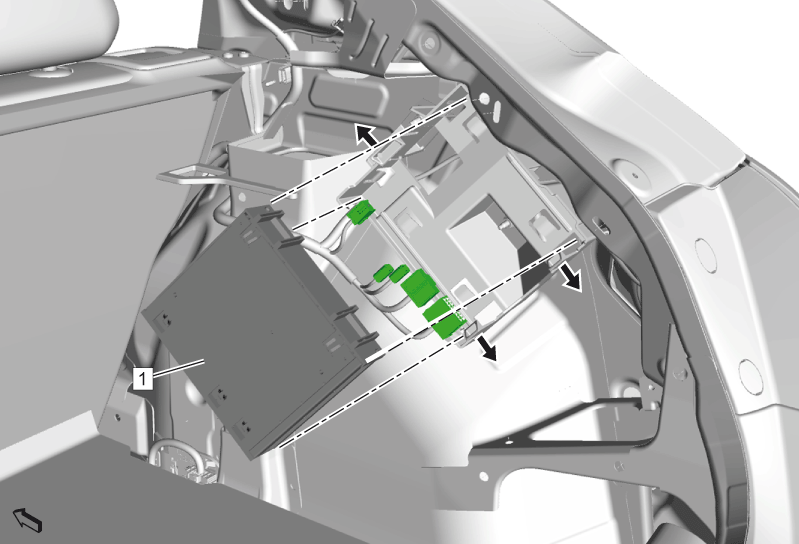

GM4375933
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side (Hatchback)
1 Radio

Procedure

  1. Disconnect the electrical connector.
  2. Unlock the retaining tabs in direction of arrows.
  3. Control Module References
