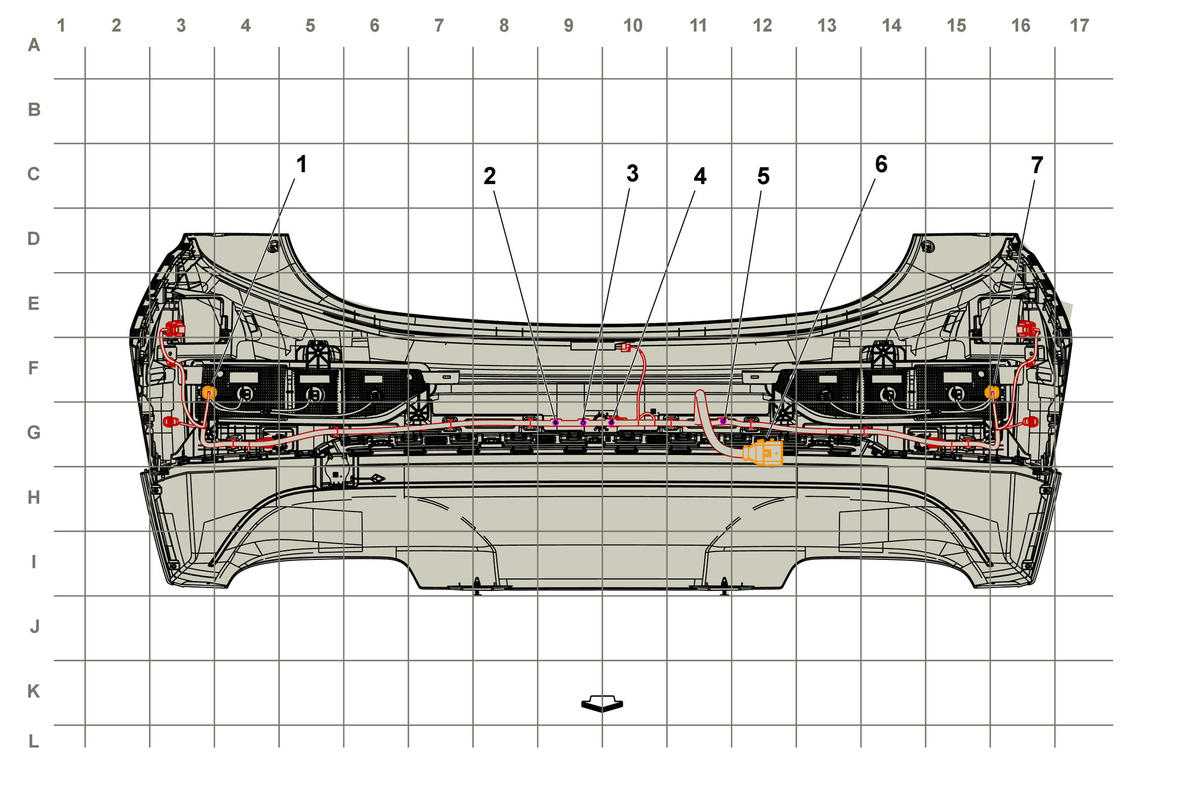

| 1. X420 Right Auxillary Tail Lamp Harness to Right Lamp Jumper Harness X420 Rear Fascia Harness to Right Lamp Jumper Harness (TW5)X420 Rear Fascia Harness to Right Lamp Jumper Harness (VD1) |
| 2. J406 Rear Fascia Harness |
| 3. J403 Rear Fascia Harness |
| 4. J402 Rear Fascia Harness |
| 5. J407 Rear Fascia Harness |
| 6. X415 Body Harness to Rear Fascia Harness X415 Body Harness to Rear Fascia Harness |
| 7. X410 Left Auxillary Tail Lamp Harness to Left Lamp Jumper Harness X410 Rear Fascia Harness to Left Lamp Jumper Harness (TW5)X410 Rear Fascia Harness to Left Lamp Jumper Harness (VD1) |
