Liftgate Extension Harness Routing

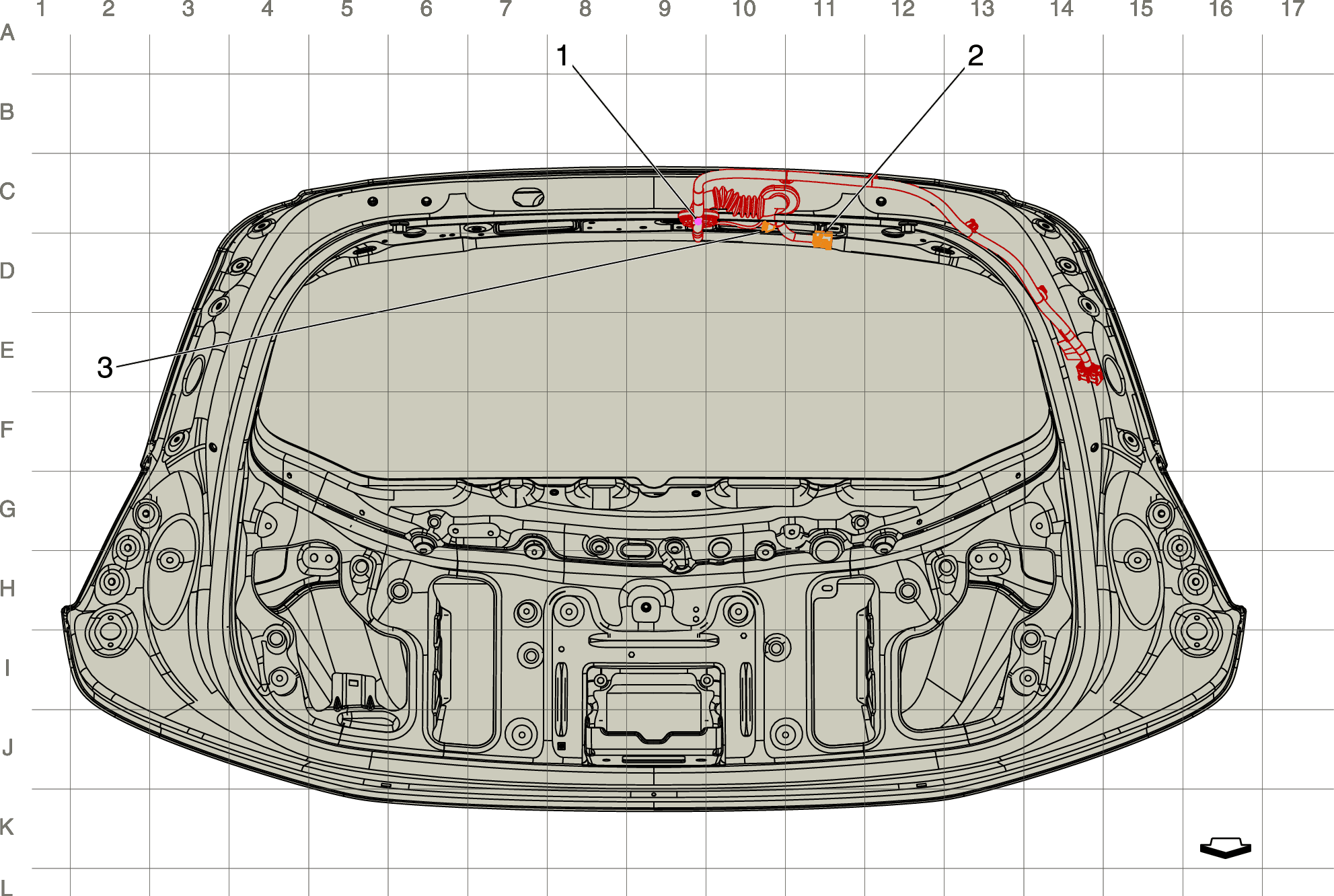

GM4531532Courtesy of GENERAL MOTORS COMPANY
Items
1. J902 Liftgate Extension Harness
2. X901 Liftgate Extension Harness to Liftgate Harness X901 Liftgate Jumper Harness to Liftgate Harness
3. X903 Center High Mount Stop Light Harness to Liftgate Harness X903 Center High Mount Stop Light Harness to Liftgate Jumper Harness
