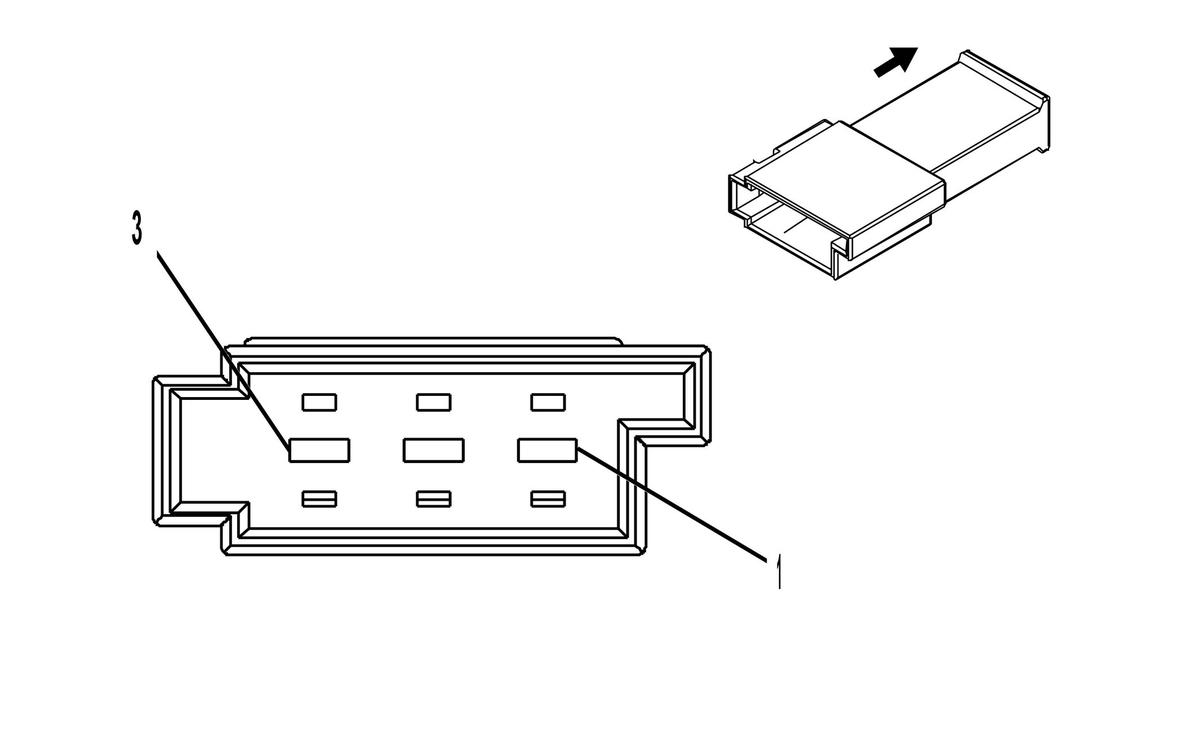

X903 Center High Mount Stop Light Harness to Liftgate Jumper Harness ()
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Center High Mount Stop Light
- OEM Connector: 24427883
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way F 1.6 Micro-Timer Series (BK)
|
Connector Part Information
- Harness Type: Liftgate Jumper
- OEM Connector: 1-962342-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 3-Way M 1.6 Micro-Timer Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-34 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE |
820 |
I |
- |
CHMSL Control |
1 |
0.5 |
BN/YE |
820 |
II |
- |
| 2 |
0.5 |
BK |
1050 |
I |
- |
Ground |
2 |
0.5 |
BK |
1050 |
II |
- |
| 3 |
- |
- |
- |
- |
- |
Not Occupied |
3 |
- |
- |
- |
- |
- |
