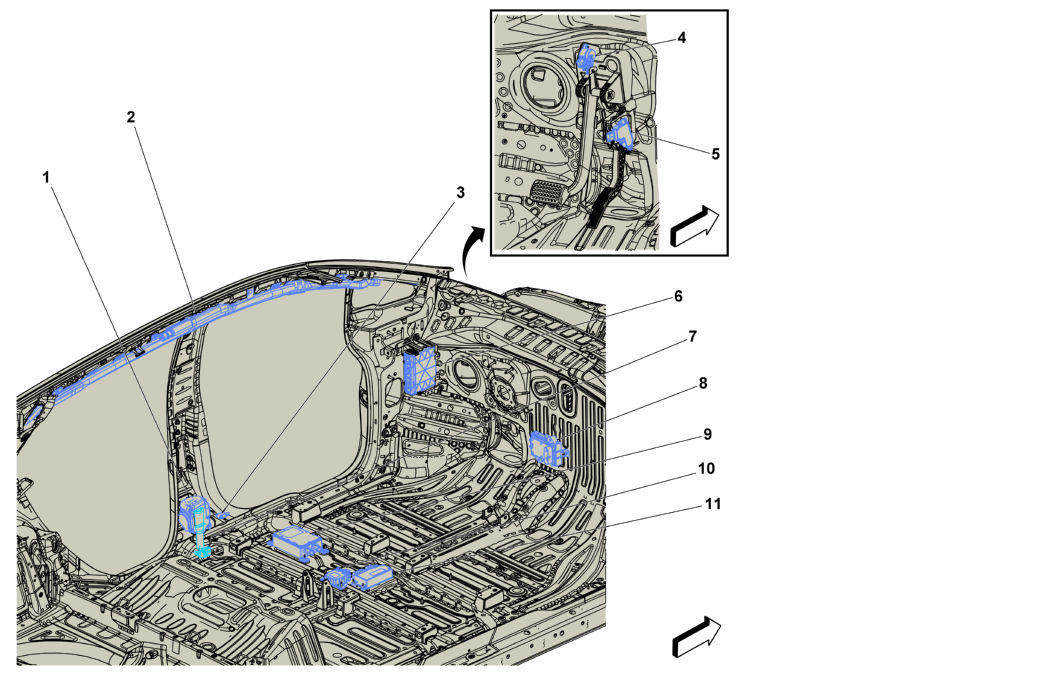

Left Front of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Left Front of Passenger Compartment Components

Items
1 F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver (AY0)
2 F105L Roof Rail Air Bag - Left F105L Roof Rail Air Bag - Left (AYF/AY0)
3 B63L Side Impact Sensor - Left (AY0) B63L Side Impact Sensor - Left (AY0)
4 B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
5 B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
6 K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
7 F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver (AY0)
8 K38 Chassis Control Module K38 Chassis Control Module
9 K190 Power Line Communication Module K190 Power Line Communication Module X1 (CBT)K190 Power Line Communication Module X2 (CBT)
10 K132 Pedestrian Alert Sound Control Module K132 Pedestrian Alert Sound Control Module
11 K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0+MAW)K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AY0+MBM)K36 Inflatable Restraint Sensing and Diagnostic Module X2 (AYF)
