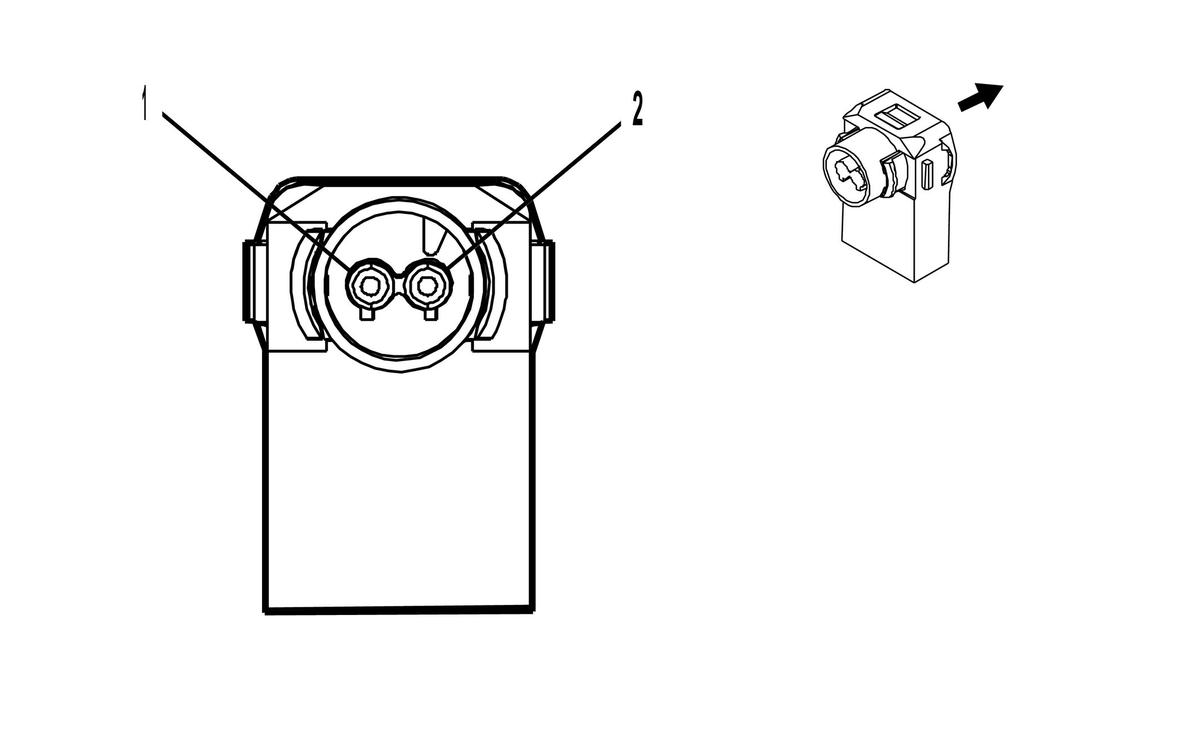

F112D Seat Belt Retractor Pretensioner - Driver (AY0)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33345784
- Service Connector: 19355416
- Description: 2-Way F ABX-5 Series (GE with YE Cover)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
OG/WH |
3477 |
Driver Seat Belt Retractor Pretensioner High Control |
I |
- |
| 2 |
0.5 |
GY/OG |
3478 |
Driver Seat Belt Retractor Pretensioner Low Control |
I |
- |
