Left of Engine Compartment Harness Routing
Left of Engine Compartment Harness Routing

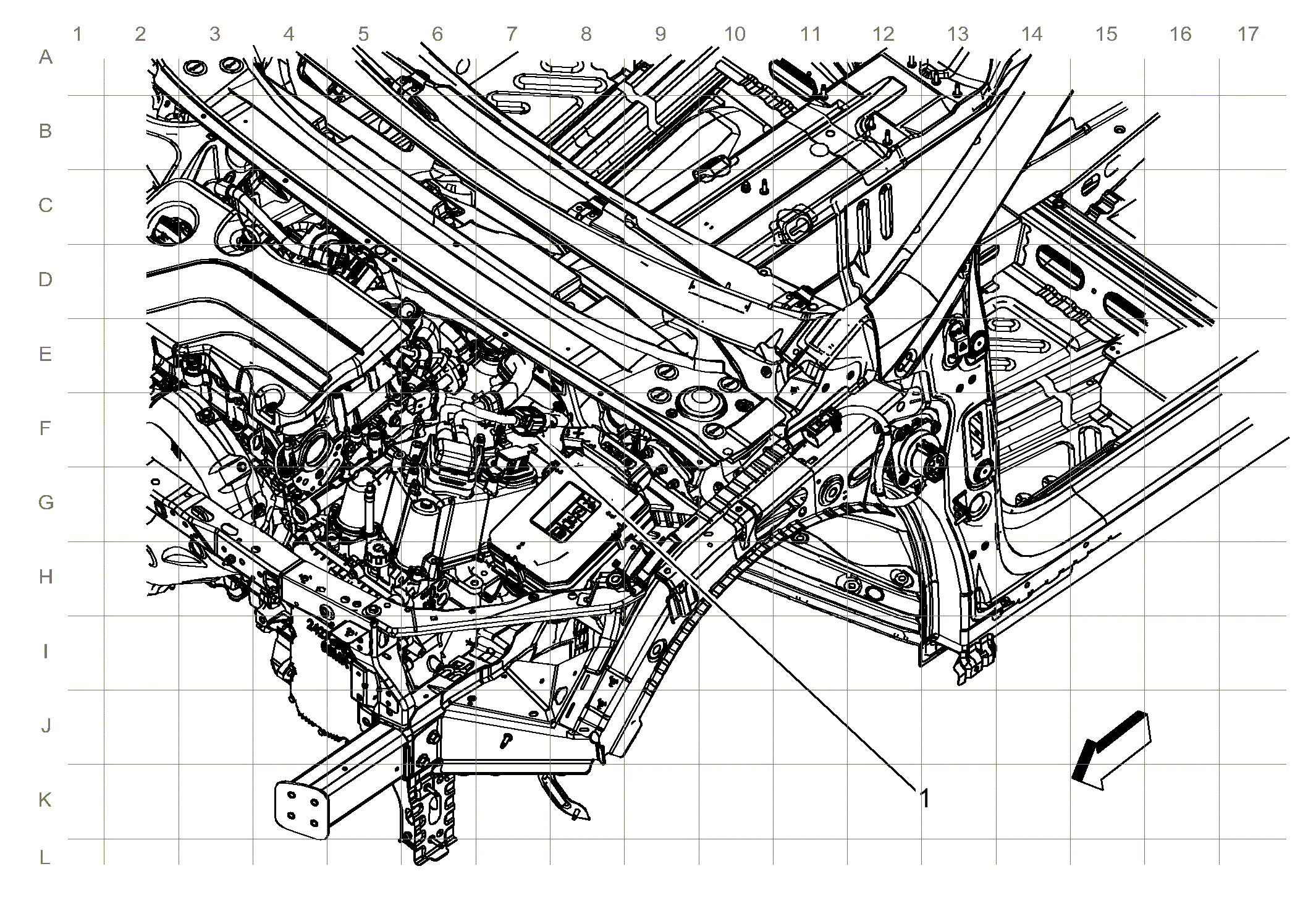

Fig 1: Left of Engine Compartment Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1. X130
X130 Battery Cable Harness to Battery Cable Harness
