X130 Battery Cable Harness to Battery Cable Harness
|
|
|

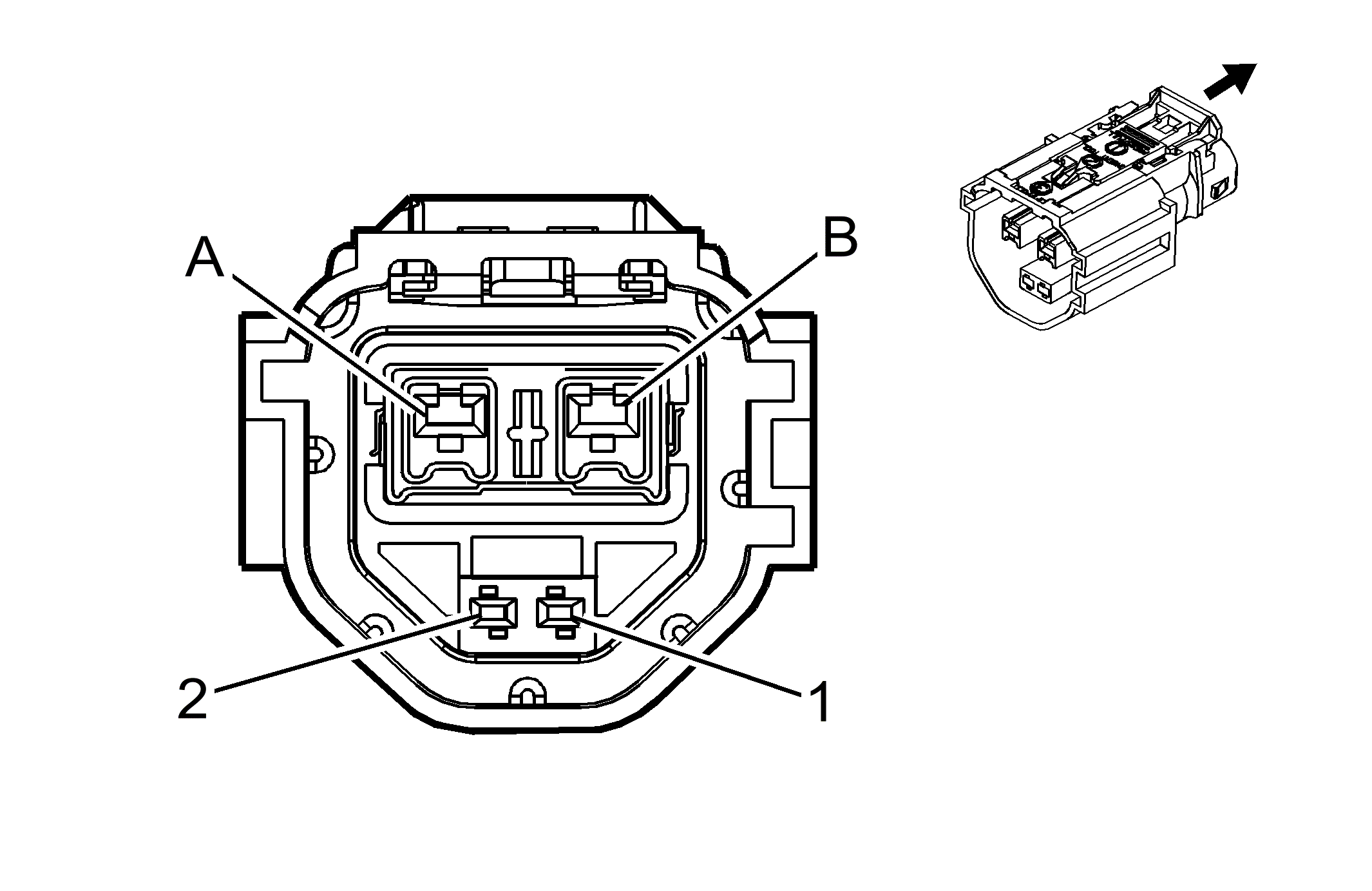

Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13859922
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 150, 280 CTS Series, Sealed (OG)
|

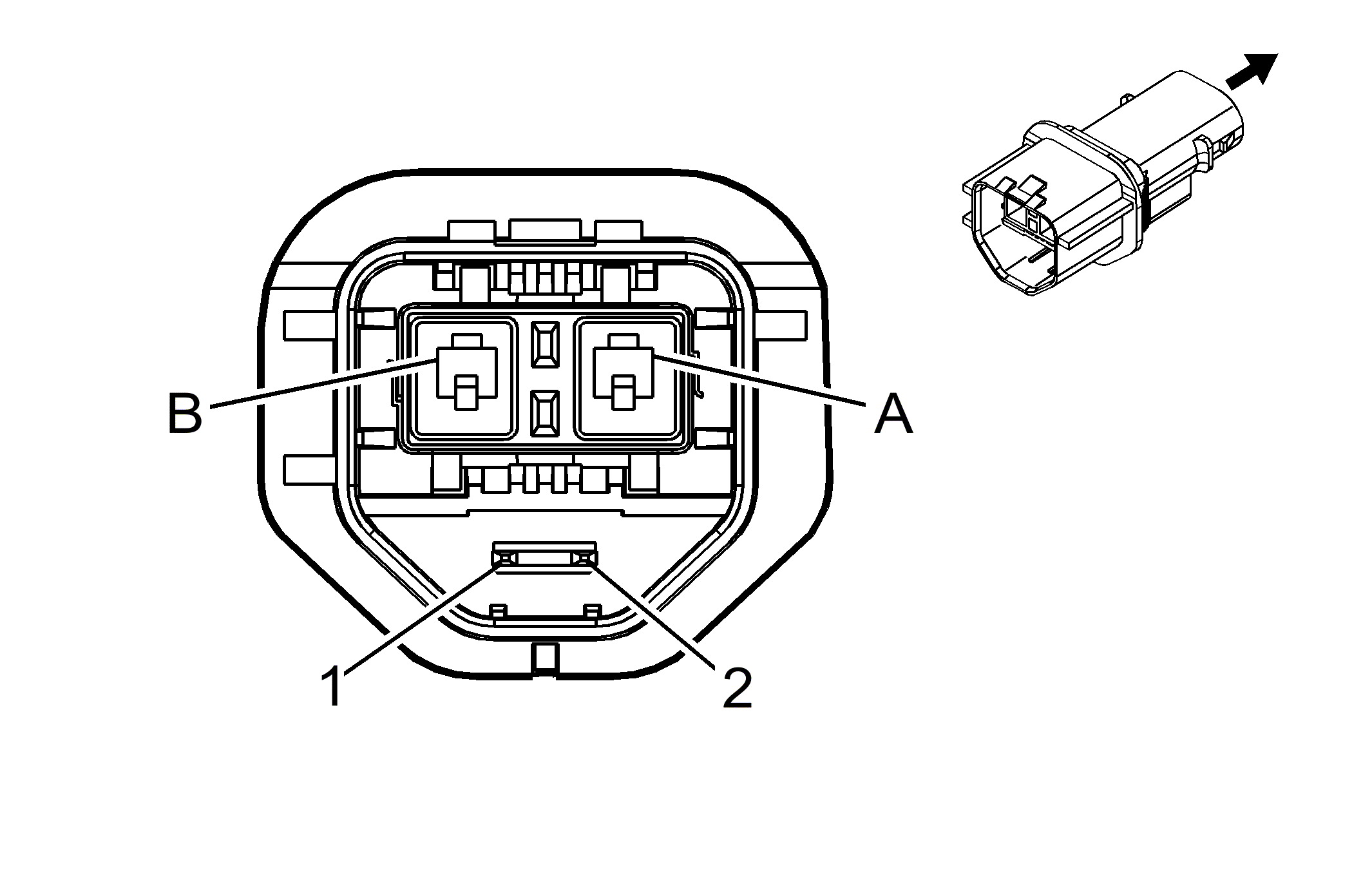

Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 13966949
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way M 2.8 High Voltage Shield Pack Series, Sealed (OG)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
No Tool Required |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
- |
- |
Not Occupied |
1 - 2 |
- |
- |
- |
- |
- |
| A |
5 |
OG |
3974 |
I |
- |
High Voltage Battery 5 (+) |
A |
5 |
OG |
3974 |
II |
- |
| B |
5 |
OG |
3973 |
I |
- |
High Voltage Battery 5 (-) |
B |
5 |
OG |
3973 |
II |
- |
