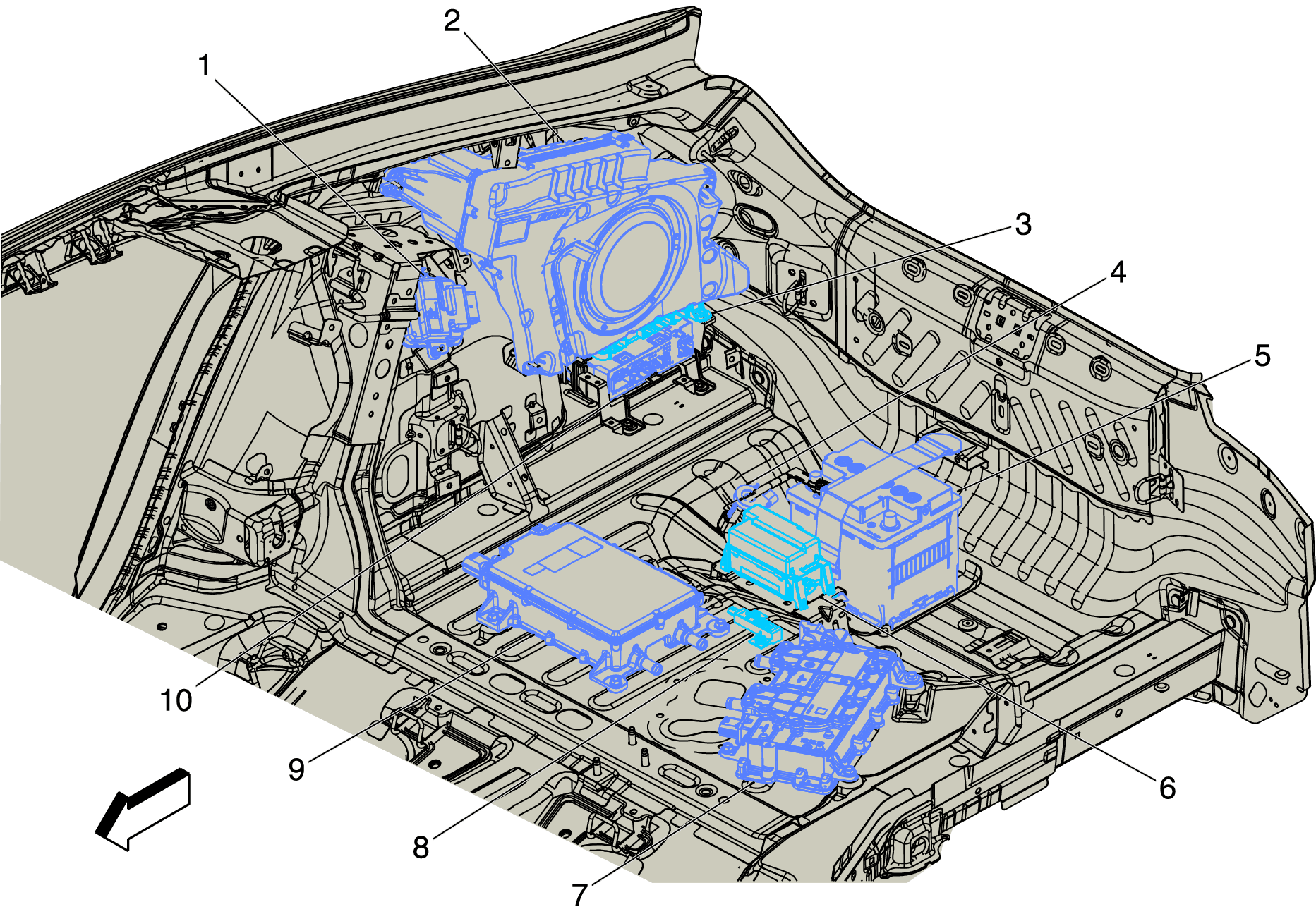

Luggage Compartment Components (1 of 2)
Luggage Compartment Components (1 of 2)
| Items |
|---|
| 1. K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module |
| 2. P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer (UQA) |
| 3. T3 Audio Amplifier (UQA) T3 Audio Amplifier X1T3 Audio Amplifier X2T3 Audio Amplifier X3T3 Audio Amplifier X4 |
| 4. B18 Battery Current Sensor B18 Battery Current Sensor |
| 5. C1 Battery C1 Battery |
| 6. X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body Wire Entry |
| 7. K1 14V Power Module K1 14V Power Module X1K1 14V Power Module X2K1 14V Power Module X3K1 14V Power Module X4 |
| 8. T10E Keyless Entry Antenna - Rear Compartment T10E Keyless Entry Antenna - Rear Compartment |
| 9. T18 Battery Charger T18 Battery Charger X1 |
| 10. A11 Radio A11 Radio X1A11 Radio X2A11 Radio X3A11 Radio X4A11 Radio X6 |
