Front Grille Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the radiator grille molding. Refer to Radiator Grille Molding Replacement .

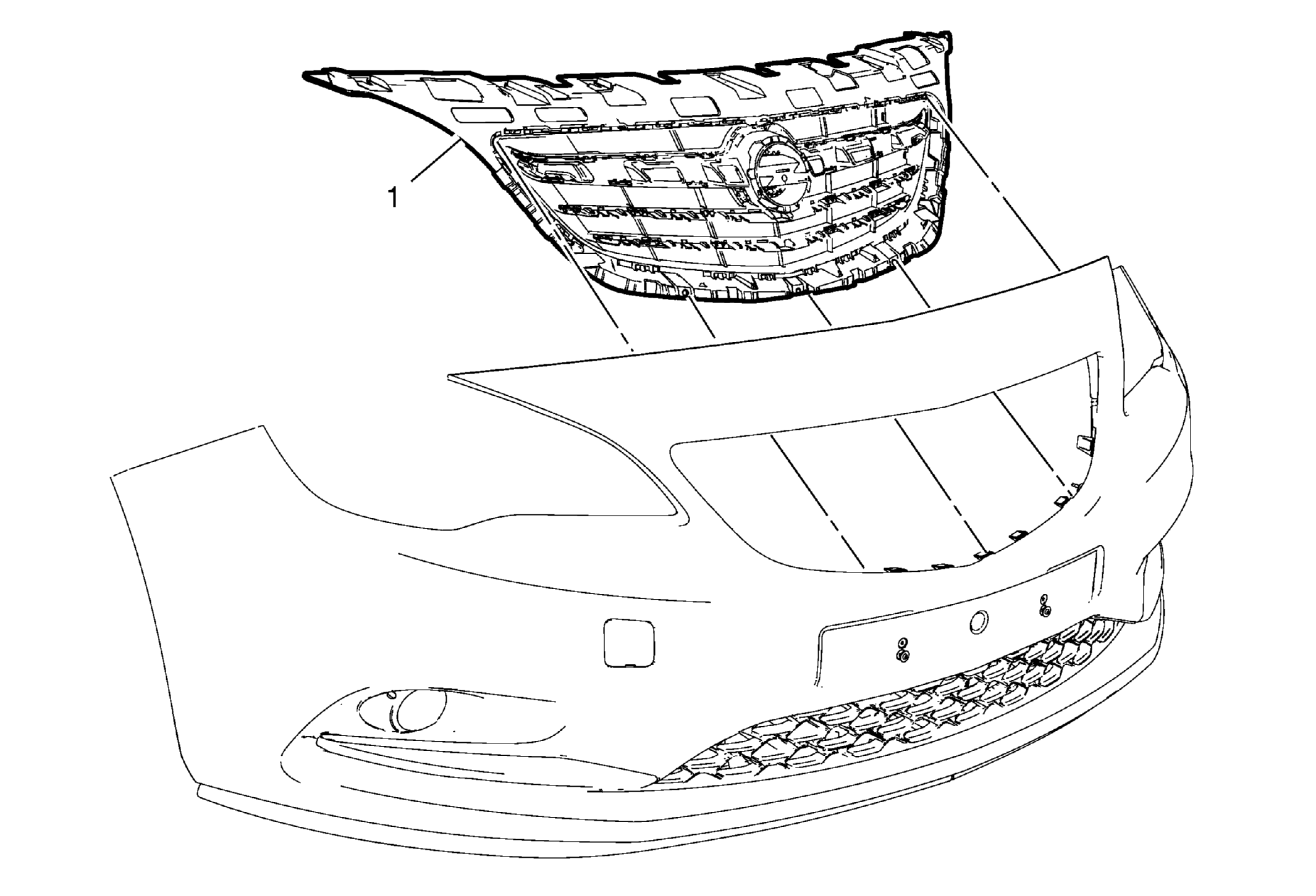

1	Radiator Grille Procedure Use a flat bladed plastic trim tool to aid in removal of the radiator grille. Unlock 23 retaining clamps and snap-in noses.

Callout

Component Name

Preliminary Procedure
Remove the radiator grille molding. Refer to Radiator Grille Molding Replacement .

Radiator Grille

Procedure

Use a flat bladed plastic trim tool to aid in removal of the radiator grille.
Unlock 23 retaining clamps and snap-in noses.
