Radiator Grille Molding Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

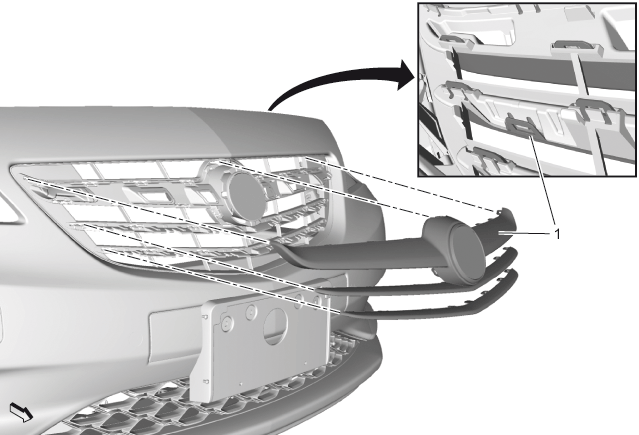

1	Radiator Grille Molding Procedure Use a flat bladed plastic trim tool to aid in removal of the radiator grille molding. Unlock 17 retaining clamps and snap-in noses. When replacing the radiator grille molding, transfer the radiator grille emblem/nameplate to new molding. Refer to Radiator Grille Emblem/Nameplate Replacement .

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .

Radiator Grille Molding

Procedure

Use a flat bladed plastic trim tool to aid in removal of the radiator grille molding.
Unlock 17 retaining clamps and snap-in noses.
When replacing the radiator grille molding, transfer the radiator grille emblem/nameplate to new molding. Refer to Radiator Grille Emblem/Nameplate Replacement .
