Heater and Air Conditioning Evaporator Case Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

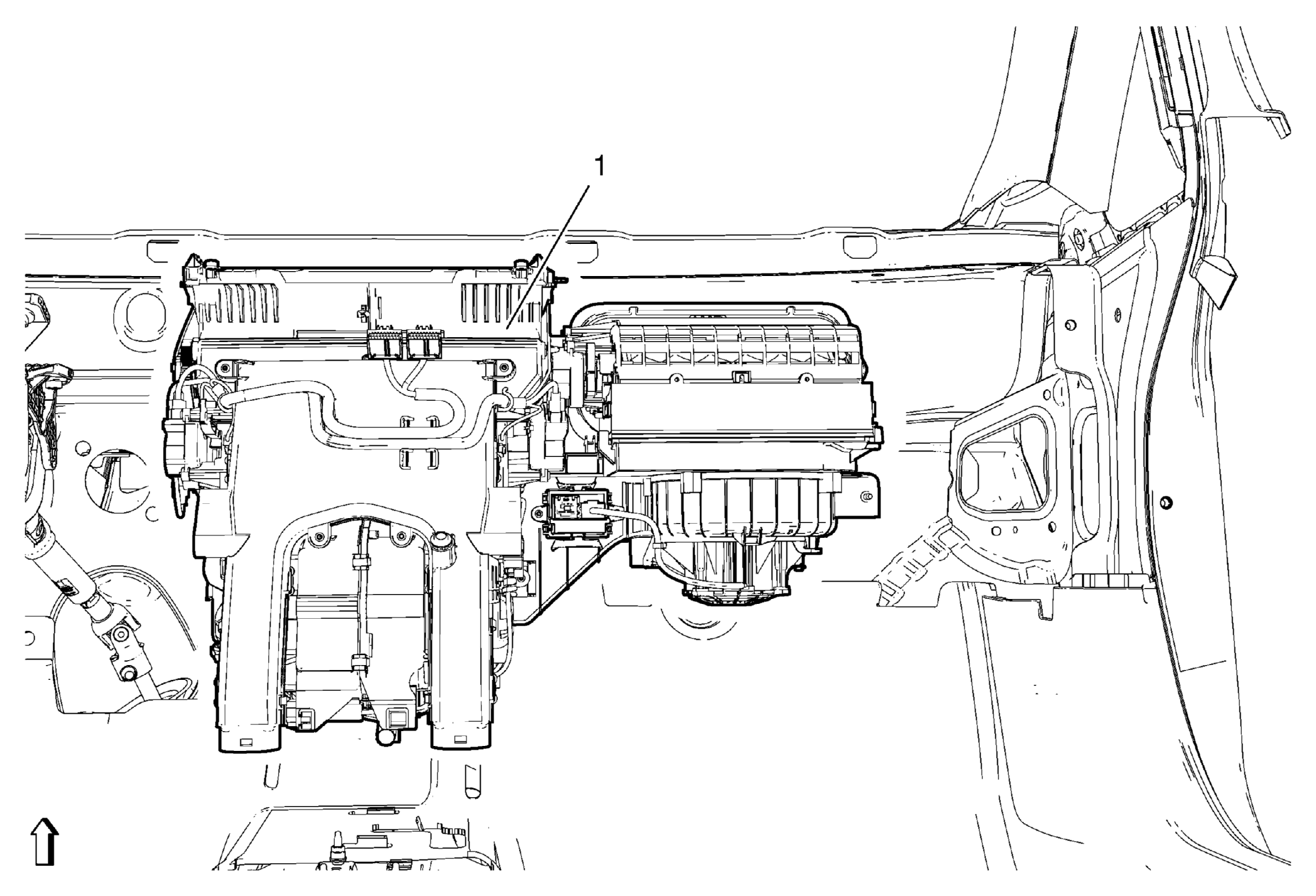

GM2191301
Callout Component Name
Preliminary Procedures
Remove the instrument panel tie bar. Refer to Instrument Panel Tie Bar Replacement .
1 Heater and Air Conditioning Evaporator Case
Procedure
Transfer all the parts as needed.
