Heater Core Outlet Tube Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

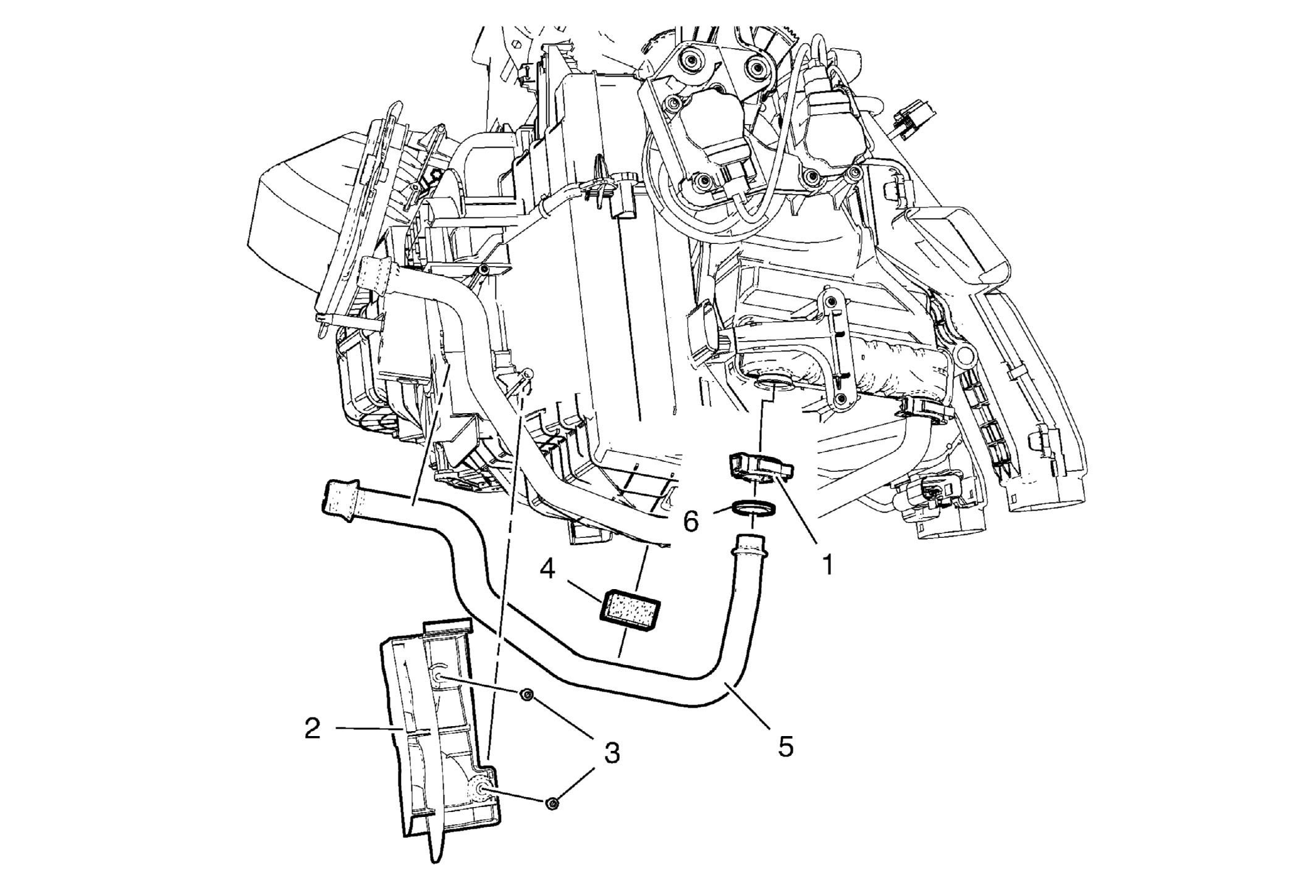

| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Heater Core Outlet Tube Clamp |
| 2 | Heater Core Tube Bracket |
| 3 | Heater Core Tube Bracket Bolt[2x]
CAUTION:
|
| 4 | Heater Core Tube Foam |
| 5 | Heater Core Outlet Tube |
| 6 | Heater Core Outlet Tube O-Ring Seal Procedure Air Conditioning O-Ring Seal Replacement |
