Air Inlet Housing Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

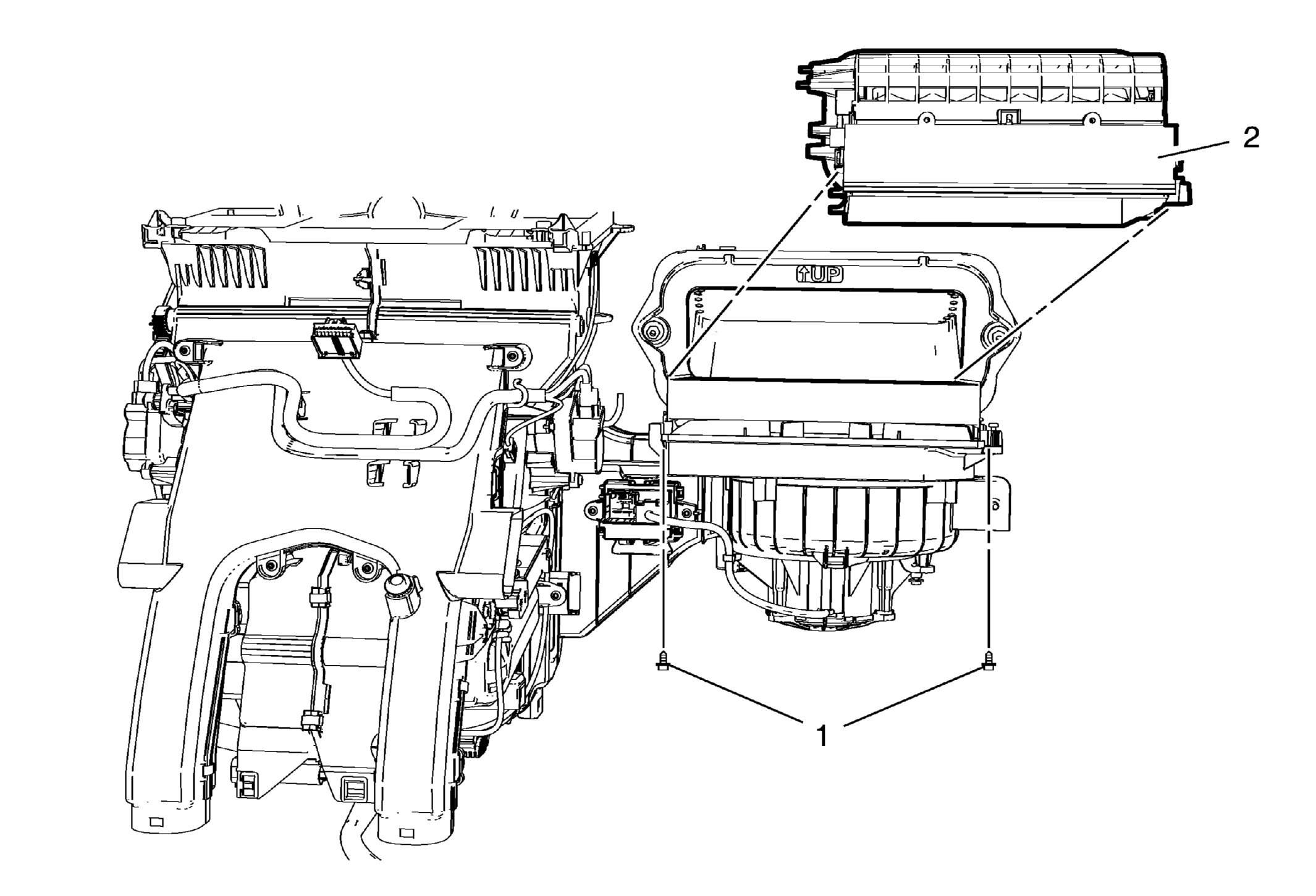

Callout	Component Name
Preliminary Procedures Remove heater and air conditioning evaporator case. Refer to Heater and Air Conditioning Evaporator Case Replacement . Remove air inlet valve lever - front. Refer to Air Inlet Valve Lever Replacement - Front . Remove air inlet valve lever - rear. Refer to Air Inlet Valve Lever Replacement - Rear .
1	Air inlet housing bolt (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Air Inlet Housing

Callout

Component Name

Preliminary Procedures

Remove heater and air conditioning evaporator case. Refer to Heater and Air Conditioning Evaporator Case Replacement .
Remove air inlet valve lever - front. Refer to Air Inlet Valve Lever Replacement - Front .
Remove air inlet valve lever - rear. Refer to Air Inlet Valve Lever Replacement - Rear .

Air inlet housing bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Air Inlet Housing
