Air Inlet Assembly Replacement
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

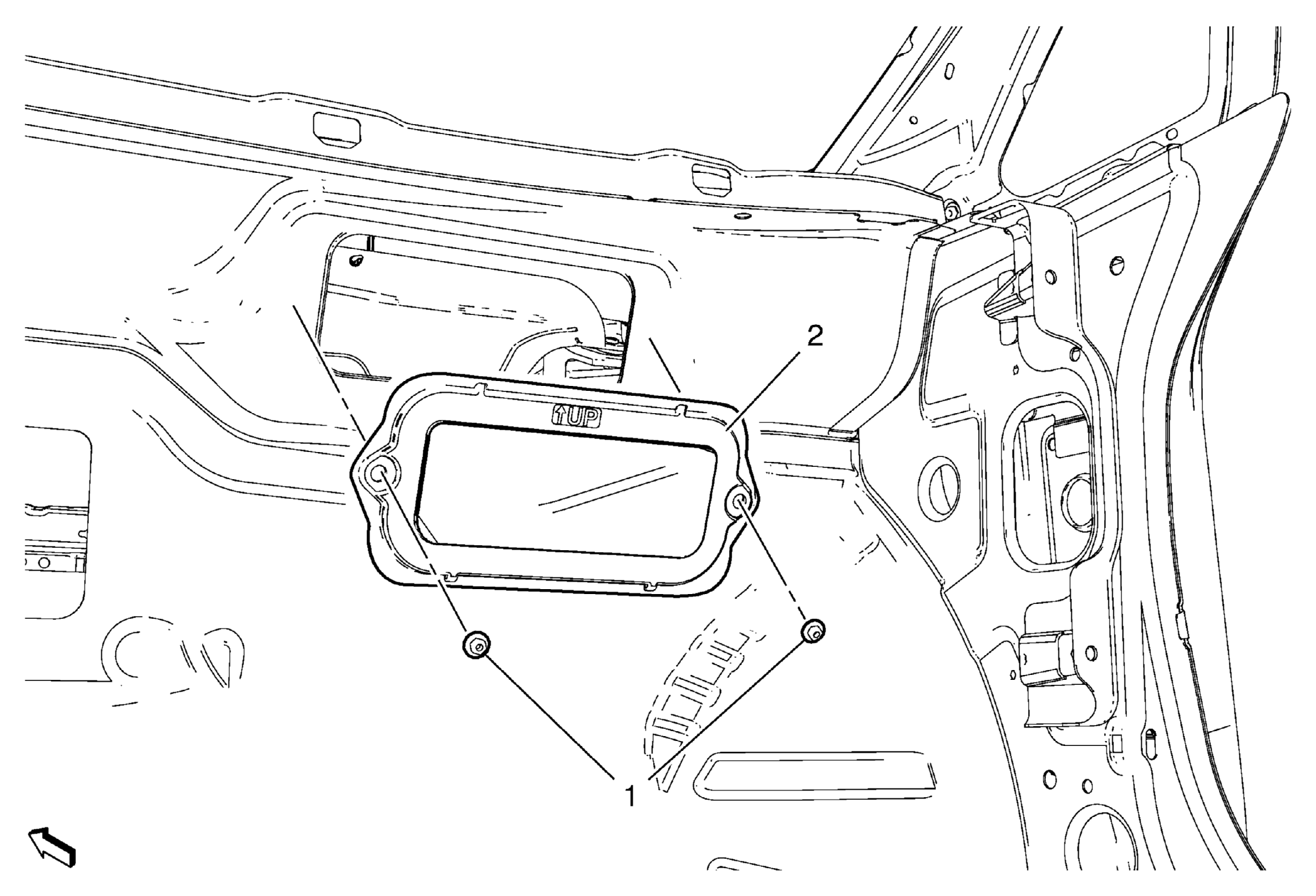

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the heater and air conditioning evaporator case. Refer to Heater and Air Conditioning Evaporator Case Replacement . |
|
| 1 | Air Inlet Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Inlet |
