Air Conditioning Compressor Bracket Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

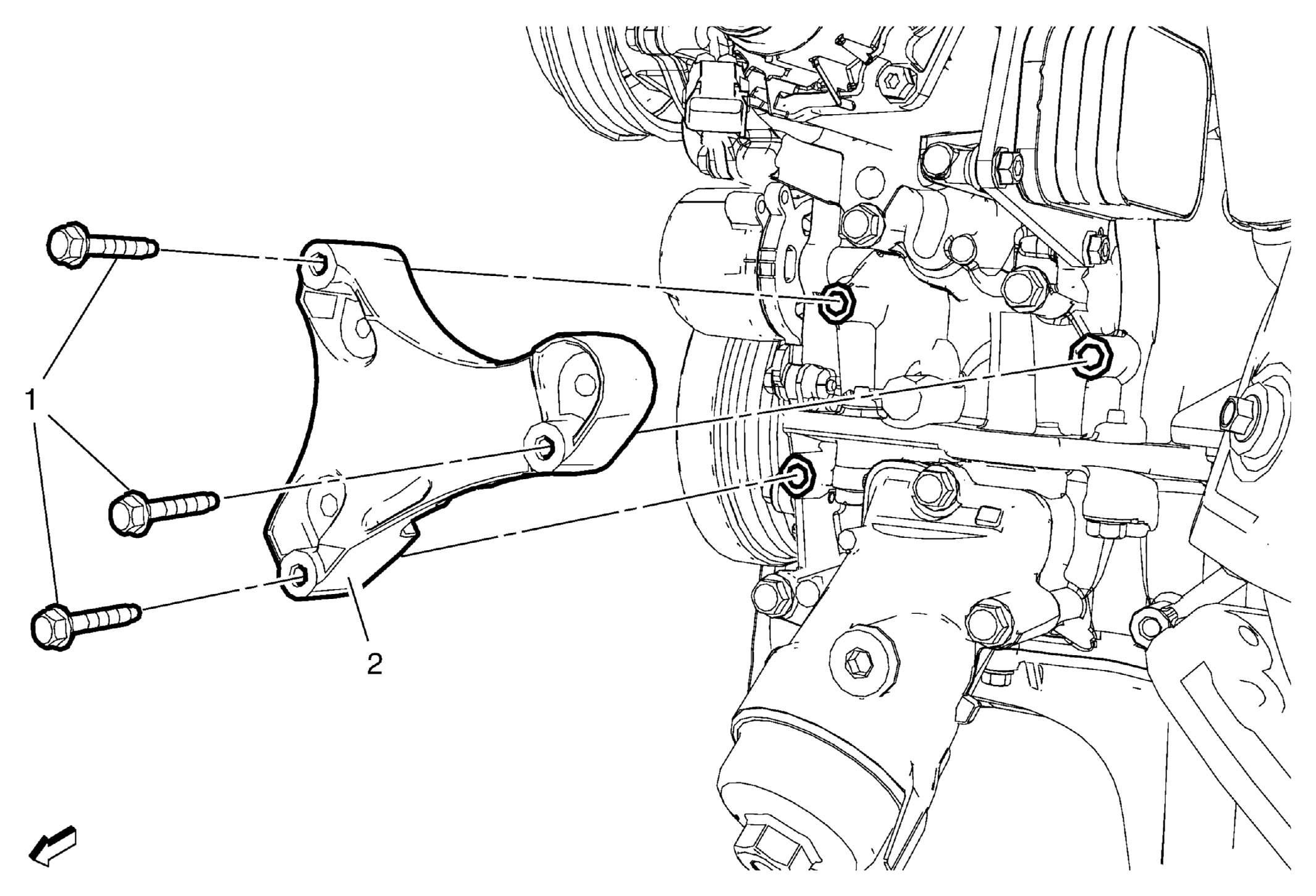

GM2750539
Callout Component Name
Preliminary Procedure
Remove the air conditioning compressor. Refer to Air Conditioning Compressor Replacement .
1 Air Conditioning Compressor Bracket Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
2 Air Conditioning Compressor Bracket
