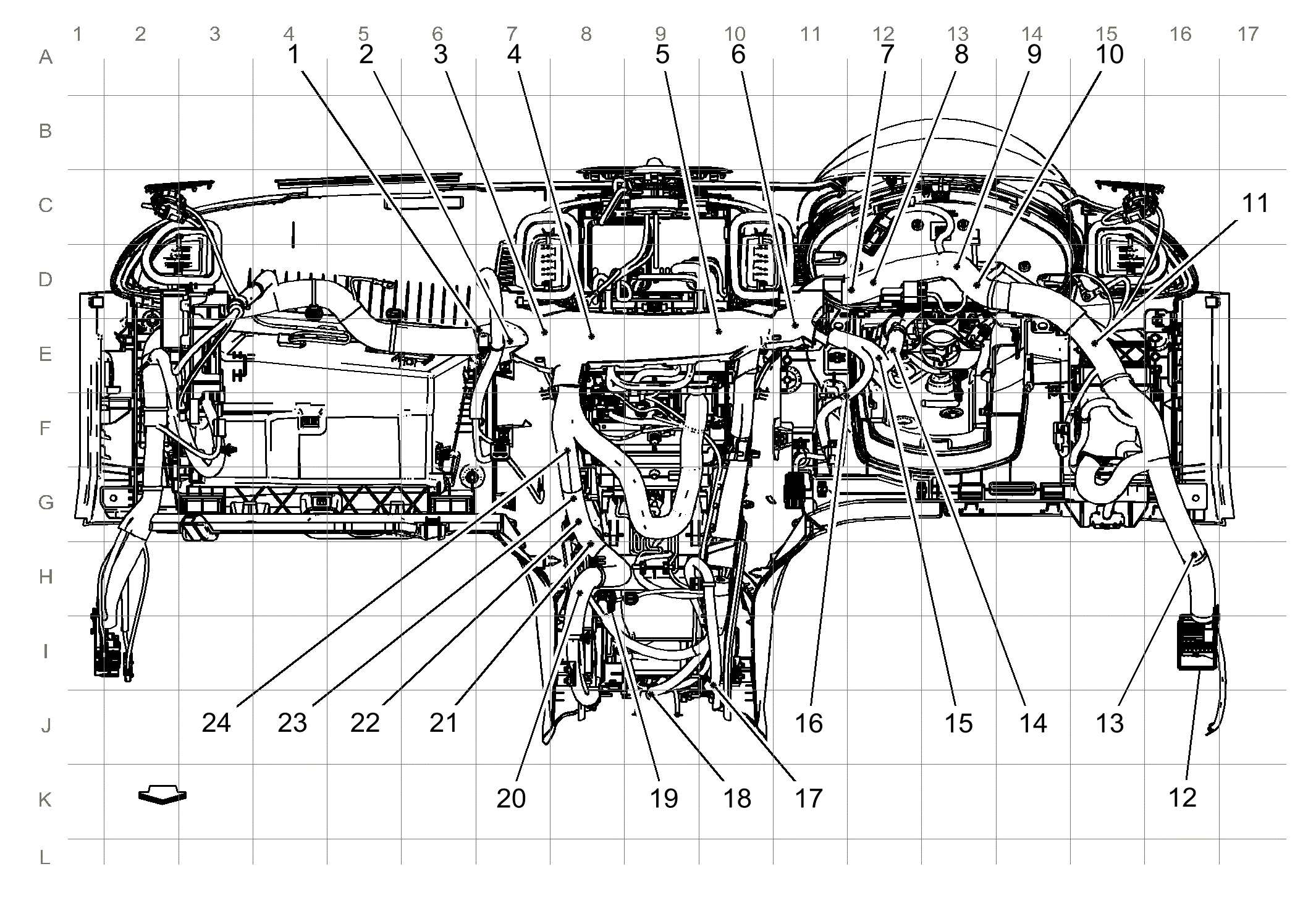

Instrument Panel Harness Routing
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J209 Instrument Panel Harness |
| 2. J233 Instrument Panel Harness |
| 3. J218 Instrument Panel Harness |
| 4. J207 Instrument Panel Harness |
| 5. J219 Instrument Panel Harness |
| 6. J217 Instrument Panel Harness |
| 7. J215 Instrument Panel Harness |
| 8. J238 Instrument Panel Harness |
| 9. J227 Instrument Panel Harness |
| 10. J216 Instrument Panel Harness |
| 11. J230 Instrument Panel Harness |
| 12. X200 Instrument Panel Harness to Body Harness X200 Instrument Panel Harness to Body Harness |
| 13. J232 Instrument Panel Harness |
| 14. J237 Instrument Panel Harness |
| 15. J236 Instrument Panel Harness |
| 16. J200 Instrument Panel Harness |
| 17. J203 Instrument Panel Harness |
| 18. J204 Instrument Panel Harness |
| 19. X300 Instrument Panel Harness to Floor Console Harness X300 Instrument Panel Harness to Floor Console Harness |
| 20. J228 Instrument Panel Harness |
| 21. J205 Instrument Panel Harness |
| 22. J206 Instrument Panel Harness |
| 23. J202 Instrument Panel Harness |
| 24. J220 Instrument Panel Harness |
