X300 Instrument Panel Harness to Floor Console Harness
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
 Courtesy of GENERAL MOTORS COMPANY
|

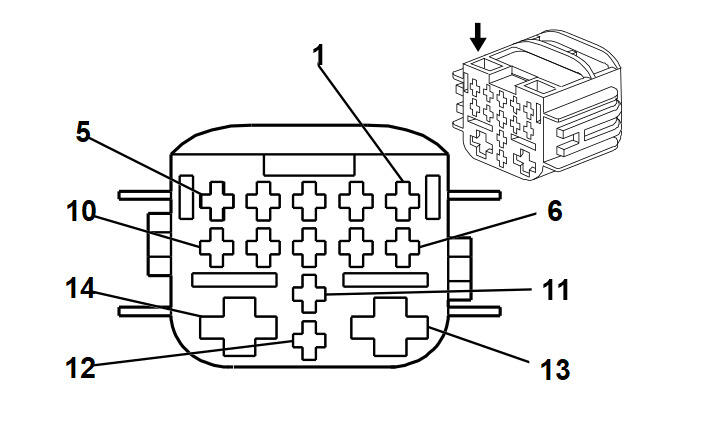

Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 3 023 37 01
- Service Connector: 13355848
- Description: 14-Way F 1.5, 4.8 DSC Series (BK)
|

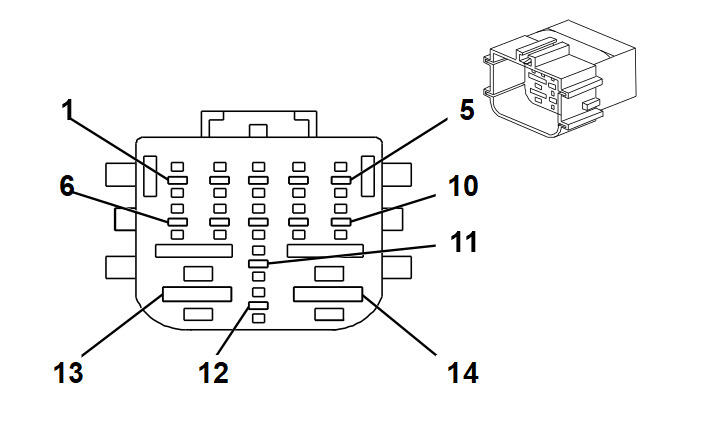

Connector Part Information
- Harness Type: Floor Console
- OEM Connector: 3 033 10 01
- Service Connector: Service by Harness - See Part Catalog
- Description: 14-Way M 1.5, 5.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575858 |
J-35616-42 (RD) |
J-38125-36 |
927837-1 |
Lear 25 |
C |
A |
| II |
13578847 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| III |
13580020 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| V |
Not Required |
J-35616-32 (OR) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
BU/VT |
1134 |
III |
- |
Park Brake Switch Signal |
1 |
0.35 |
BU/VT |
1134 |
IV |
- |
| 2 |
0.35 |
GY/RD |
7684 |
III |
- |
Park Brake Apply Switch Voltage Reference |
2 |
0.35 |
GY/RD |
7684 |
IV |
- |
| 3 |
0.35 |
BN |
6107 |
III |
- |
Park Brake Apply Switch Signal |
3 |
0.35 |
BN |
6107 |
IV |
- |
| 4 |
0.35 |
BU/BK |
6108 |
III |
- |
Park Brake Release Switch Signal |
4 |
0.35 |
BU/BK |
6108 |
IV |
- |
| 5 |
0.35 |
YE/RD |
7683 |
III |
- |
Park Brake Release Switch Voltage Reference |
5 |
0.35 |
YE/RD |
7683 |
IV |
- |
| 6 |
0.35 |
YE |
1492 |
III |
- |
Park Brake Switch Supply Voltage |
6 |
0.35 |
YE |
1492 |
IV |
- |
| 7 |
0.35 |
YE |
6817 |
III |
- |
LED Backlight Dimming Control |
7 |
0.35 |
YE |
6817 |
IV |
- |
| 8 |
0.5 |
BK |
2150 |
II |
- |
Ground |
8 |
0.5 |
BK |
2150 |
IV |
- |
| 9 |
0.35 |
WH/YE |
7557 |
III |
- |
LED Ambient Lighting Control 1 |
9 |
0.5 |
WH/YE |
7557 |
IV |
- |
| 10 |
0.5 |
BK |
1650 |
II |
- |
Ground |
10 |
0.5 |
BK |
1650 |
IV |
- |
| 11 - 12 |
- |
- |
- |
- |
- |
Not Occupied |
11 - 12 |
- |
- |
- |
- |
- |
| 13 |
1.5 |
VT |
1701 |
I |
- |
Retained Accessory Power Ignition |
13 |
1.5 |
VT |
1701 |
V |
- |
| 14 |
1.5 |
BK |
2150 |
I |
- |
Ground |
14 |
1.5 |
BK |
2150 |
V |
- |
