Body Harness Routing - Decklid Harness

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

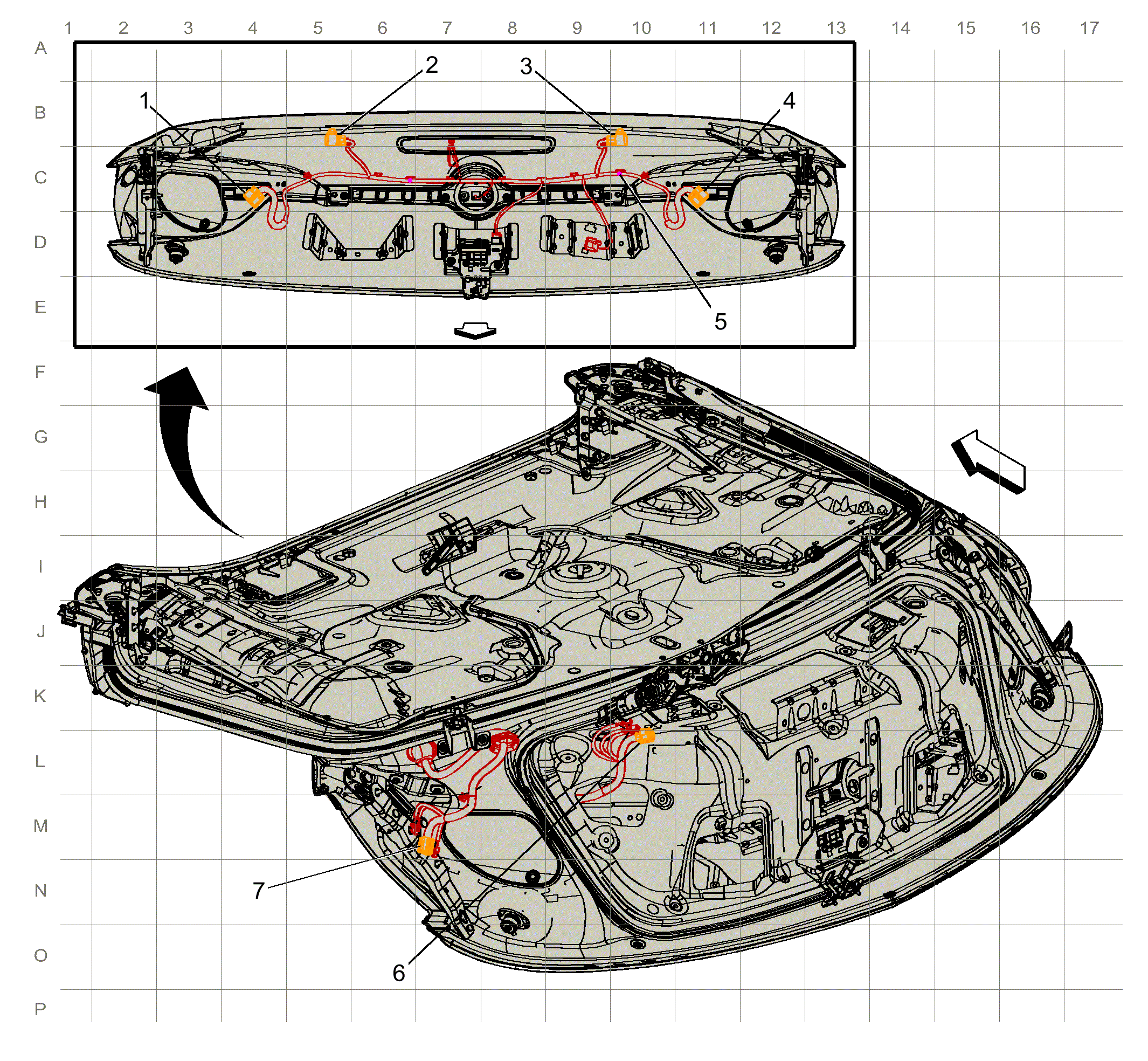

GM4243057Courtesy of GENERAL MOTORS COMPANY
Items
1. X920 Rear Compartment Lid Harness to Right Liftgate Tail Lamp Harness X92 USB Receptacle ()
2. X905 Right Rear Compartment Lid Extension Harness to Body Harness X905 Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness
3. X900 Left Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness X900 Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness
4. X910 Rear Compartment Lid Harness to Left Liftgate Tail Lamp Harness X910 Rear Compartment Lid Harness to Left Liftgate Tail Lamp Harness
5. J907 Body Harness
6. X900 Left Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness X900 Rear Compartment Lid Extension Harness to Rear Compartment Lid Harness
7. X400 Left Rear Compartment Lid Extension Harness to Body Harness X400 Rear Compartment Lid Extension Harness to Body Harness ()
