Rear Seat Back Cushion Removal and Installation (60 Percent Seat)

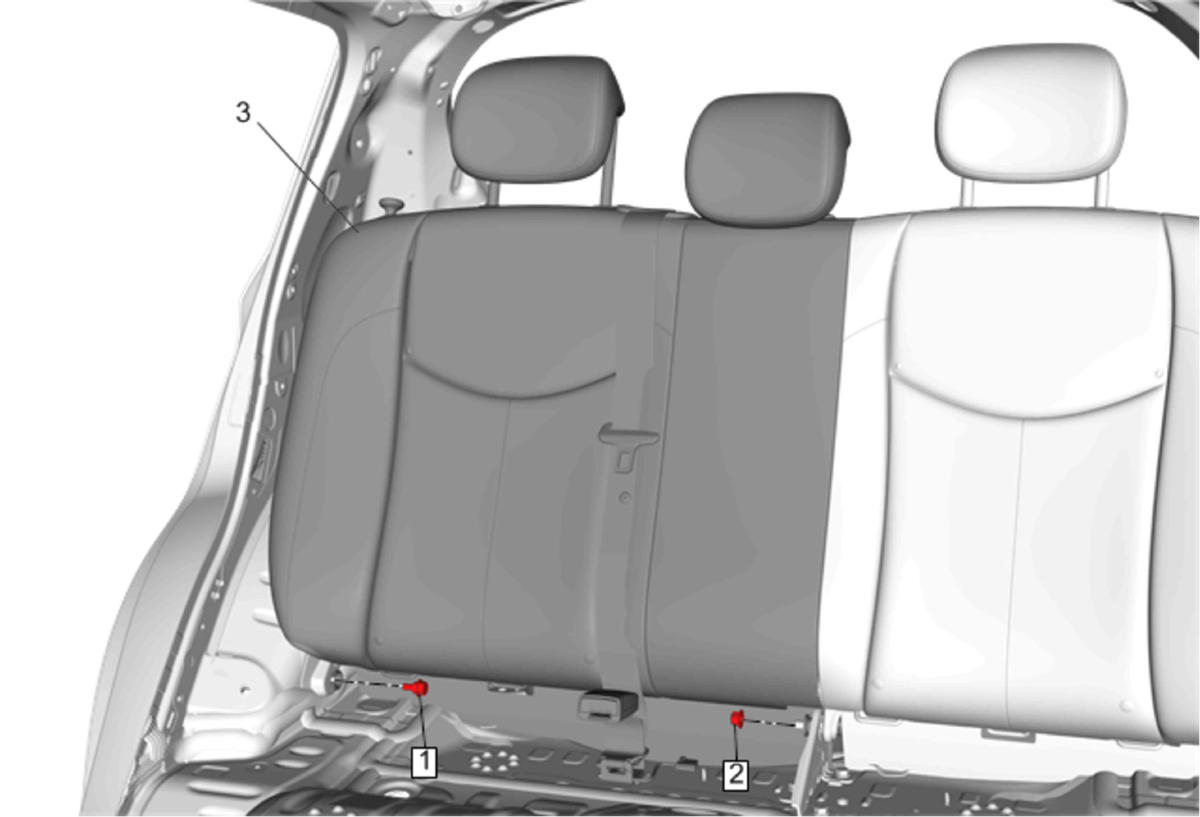

Fig 1: Rear Seat Back Cushion (60 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Seat Cushion Removal and Installation (60 Percent Seat) Rear Seat Belt Buckle - Right Side - Remove - Rear Seat Belt Buckle Replacement
1	Rear Seat Back Cushion Bolt CAUTION: Refer to Fastener Caution . Tighten 24 N.m (18 lb ft)
2	Rear Seat Back Cushion Nut Tighten 24 N.m (18 lb ft)
3	Rear Seat Back Cushion Procedure Transfer components as necessary.
