Rear Seat Cushion Removal and Installation (60 Percent Seat)

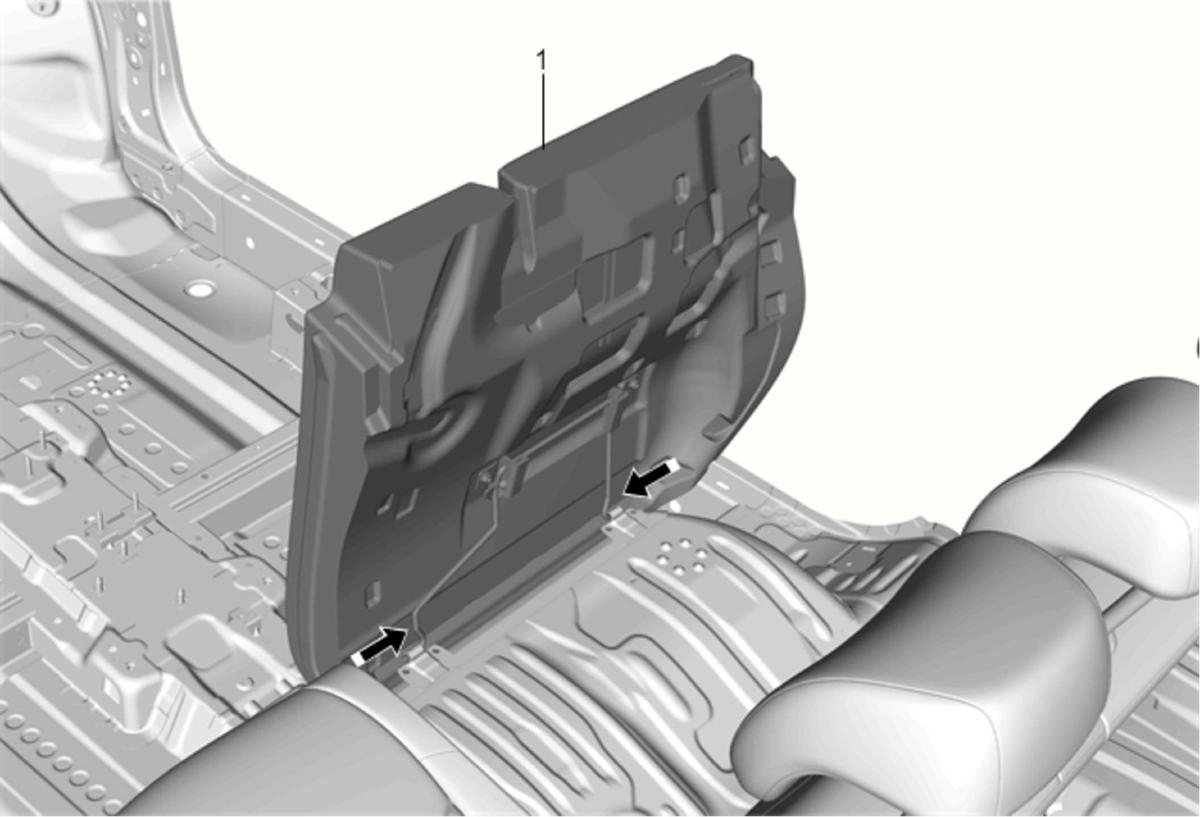

Fig 1: Rear Seat Cushion (60 Percent Seat)
GM4620561Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Seat Cushion

Procedure

  1. Reverse the rear seat cushion to disengage the rear seat cushion hinge wire.
  2. Depress the hinge wire to remove the rear seat cushion from body panel.
