Section 9 (Automatic Transmission - 5ET50 (MKE))
>>
Schematic Wiring Diagrams
>>
Automatic Transmission Controls Schematics (MKE)
>>
Pressure and Temperature
Pressure and Temperature
WARNING:
This page is about a different variant/trim than selected.

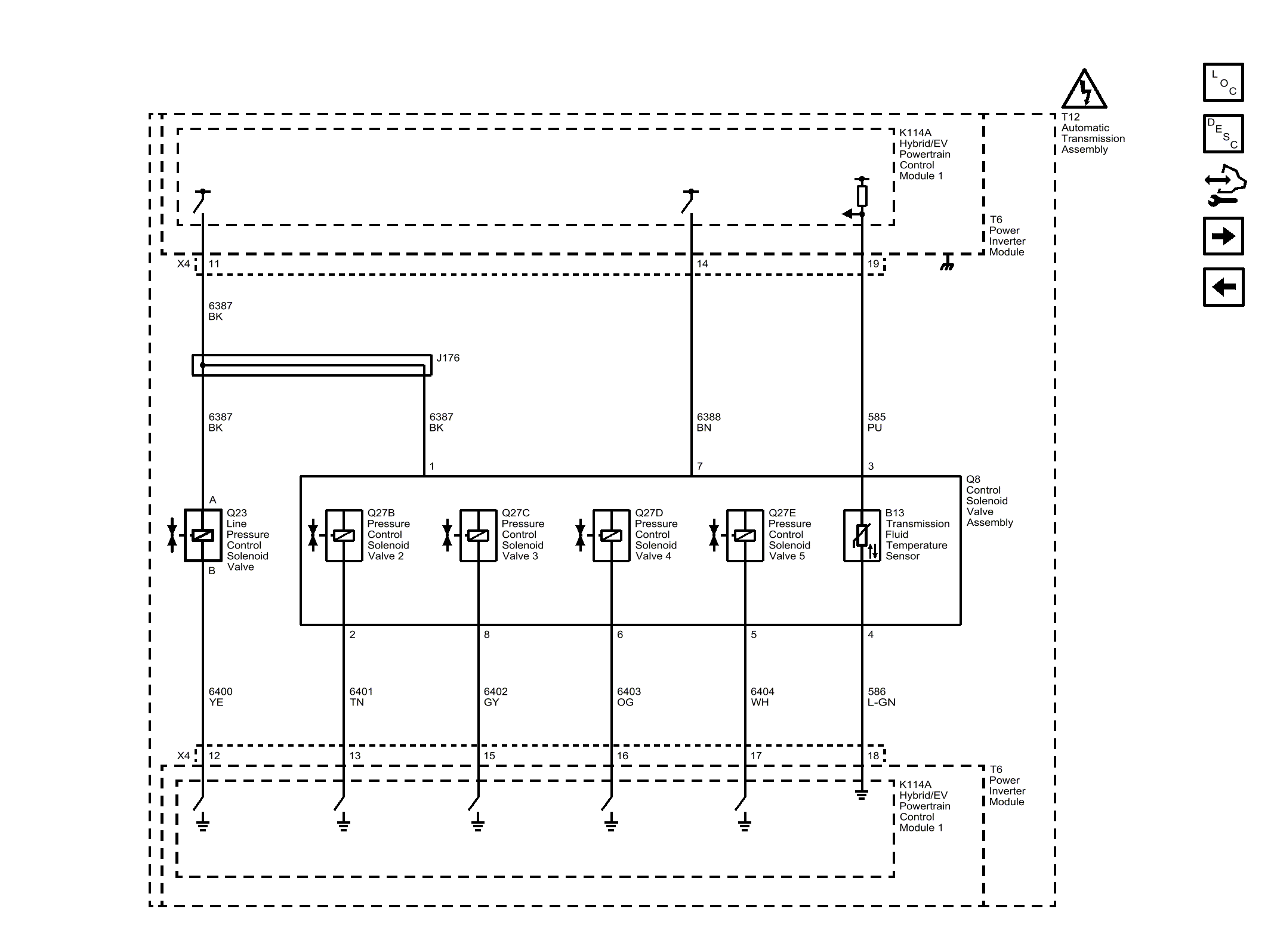

Fig 1: Pressure and Temperature
Courtesy of GENERAL MOTORS COMPANY
