Internal Mode Switch and Speed Sensor
Internal Mode Switch and Speed Sensor
WARNING:
This page is about a different variant/trim than selected.

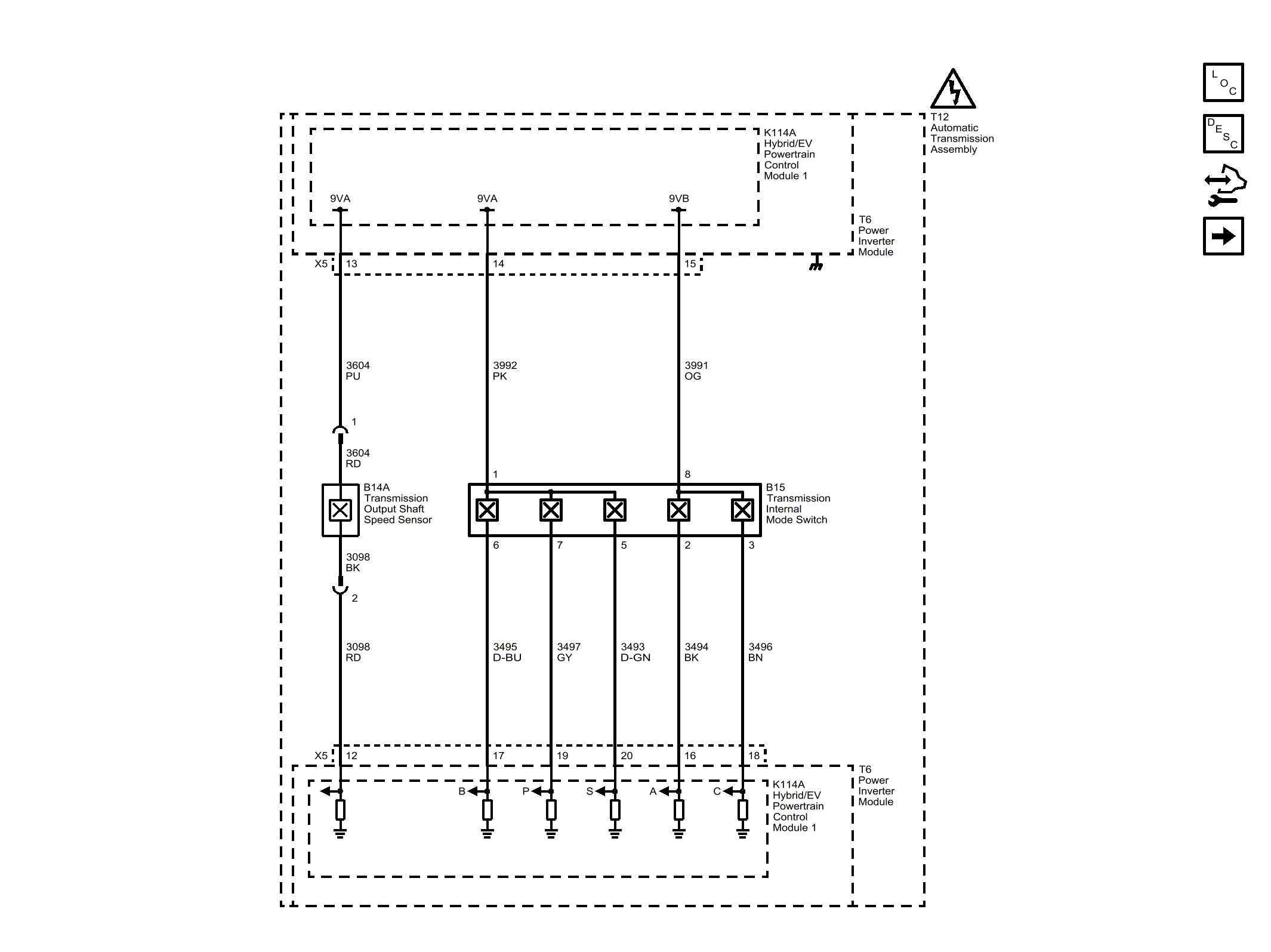

Fig 1: Internal Mode Switch and Speed Sensor
Courtesy of GENERAL MOTORS COMPANY
