Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front exhaust pipe. Refer to Exhaust Front Pipe Replacement (LTG)Exhaust Front Pipe Replacement (LFV)Exhaust Front Pipe Replacement (LKN) .
  2. Remove and the rear transmission mount bracket to rear mount through bolt (1).

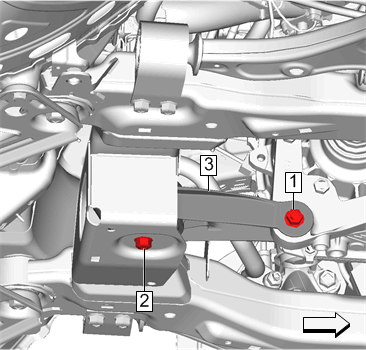

    Fig 1: Transmission Rear Mount
    GM4282649Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the rear transmission mount to frame bolt (2) and nut.
  4. Remove the rear transmission mount (3).
