Transmission Mount Strut Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

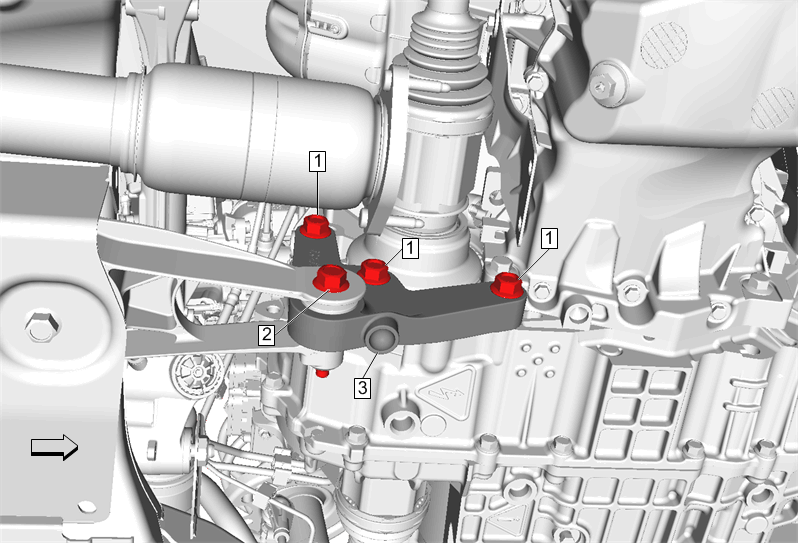

Fig 1: Transmission Mount Strut Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Exhaust Front Pipe Replacement (LTG)Exhaust Front Pipe Replacement (LFV)Exhaust Front Pipe Replacement (LKN) Using a suitable jack stand, support the rear of the powertrain.
1	Transmission Mount Strut Bracket Bolt [3x] CAUTION: Torque-to-Yield Fastener Caution Procedure Always use NEW bolts. - Do NOT reuse old bolts. Tighten First Pass: 100 N.m (74 lb ft) Final Pass: 60 - 75 degrees Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools
2	Transmission Mount Strut Bolt CAUTION: Fastener Caution Tighten First Pass: 70 N.m (52 lb ft) Final Pass: 90 - 105 degrees
3	Transmission Mount Strut Bracket
