Transmission Control Lever Knob Replacement
WARNING: This page is about a different variant/trim than selected.

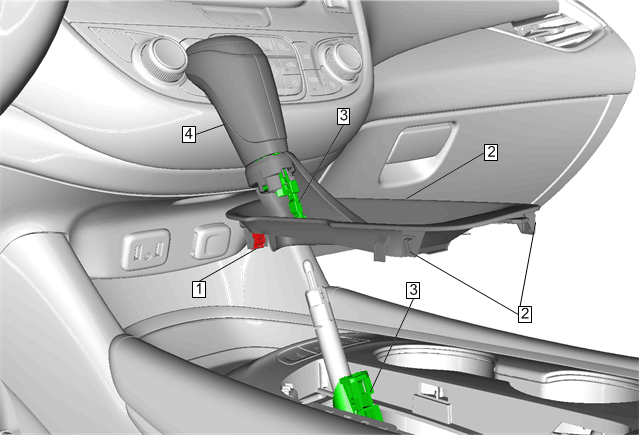

| Callout | Component Name |
|---|---|
| 1 | Transmission Control Lever Knob Retainer Clip (Qty: 1) Procedure Using a flat-bladed plastic trim tool, release the retainer securing the control lever boot. |
| 2 | Transmission Control Lever Knob Retaining Tabs (Qty: 3) Procedure Using a flat-bladed plastic trim tool, release the retainer securing the control lever boot. |
| 3 | Electrical Dock & Lock Connector
NOTE:
Shift boot cut away for clarity.
|
| 4 | Transmission Control Lever Knob
NOTE:
|
