Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Line Pressure Control Solenoid Valve (1) - Install

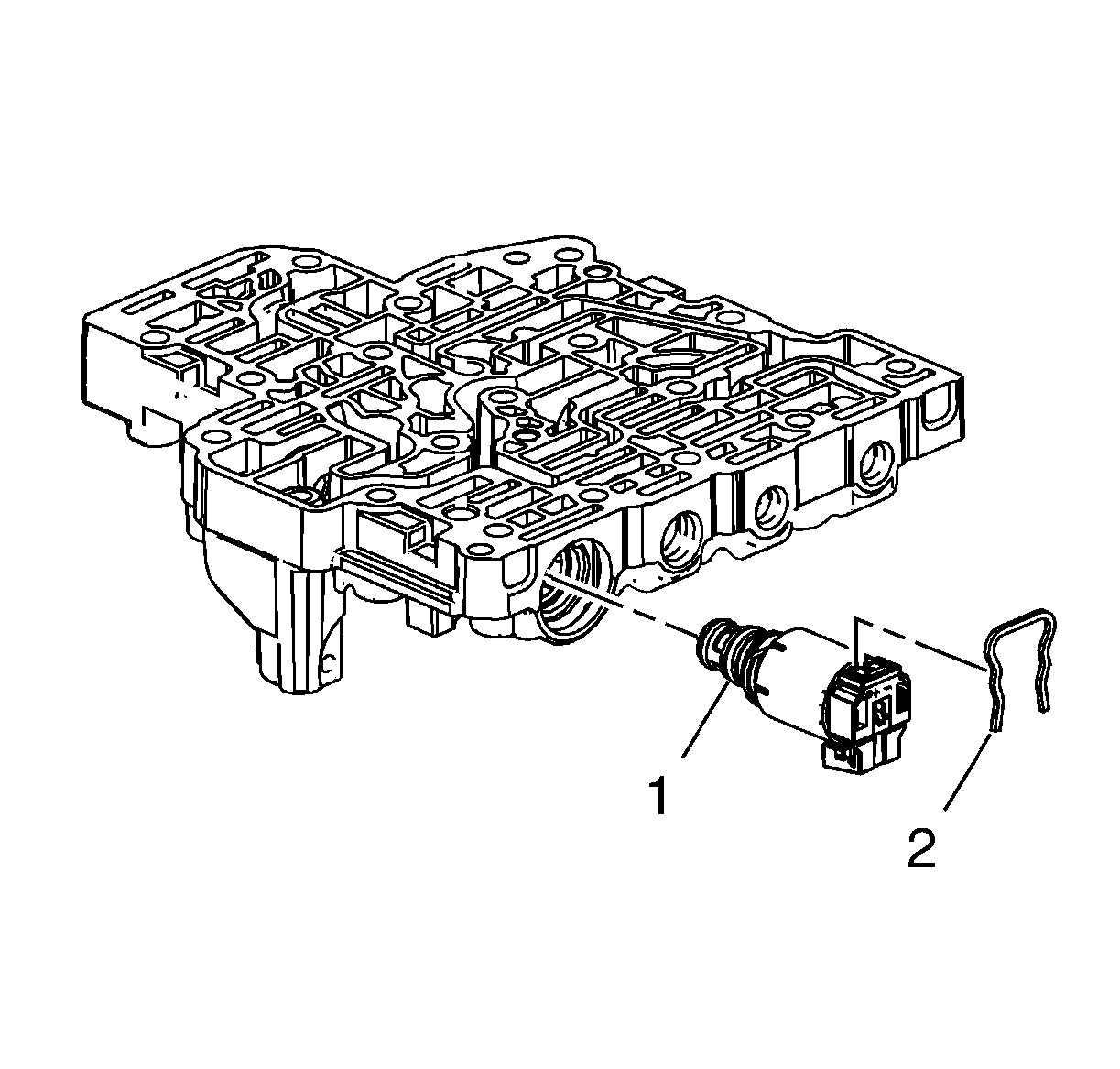

    Fig 1: Line Pressure Control Solenoid Valve And Retainer
    GM4171567Courtesy of GENERAL MOTORS COMPANY
  2. Line Pressure Control Solenoid Valve Retainer (2) - Install
  3. Control Valve Body Replacement  - Install
