Front Wheel Drive Shaft Seal Replacement - Right Side

WARNING: This page is about a different variant/trim than selected.

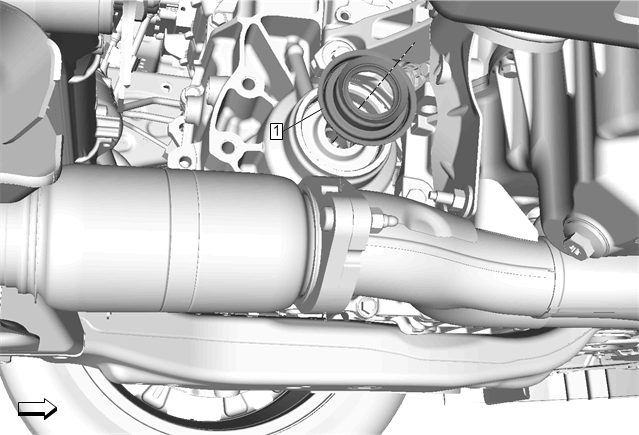

Fig 1: Front Wheel Drive Shaft Seal - Right Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheel Drive Half Shaft Replacement - Right Side (LFV, LKN)Front Wheel Drive Half Shaft Replacement - Right Side (LTG)
1	Front Wheel Drive Shaft Seal NOTE: For seal removal use GE-6125-1B Slide Hammer with Adapter with GE-23129 Universal Seal Remover. For seal installation use GE-8092 Driver Handle with DT-50301 Seal Installer. Special Tools DT-50301 Seal Installer GE-6125-1B Slide Hammer with Adapter GE-8092 Driver Handle GE-23129 Universal Seal Remover Equivalent regional tools: Special Tools

Callout

Component Name

Front Wheel Drive Shaft Seal

NOTE:

For seal removal use GE-6125-1B Slide Hammer with Adapter with GE-23129 Universal Seal Remover.
For seal installation use GE-8092 Driver Handle with DT-50301 Seal Installer.

Special Tools

Equivalent regional tools: Special Tools
