Front Wheel Drive Shaft Seal Replacement - Left Side

WARNING: This page is about a different variant/trim than selected.

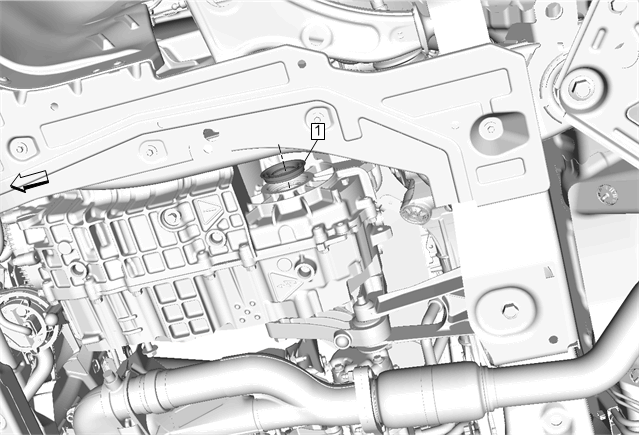

Fig 1: Front Wheel Drive Shaft Seal - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Wheel Drive Half Shaft Replacement - Left Side (MKE)Front Wheel Drive Half Shaft Replacement - Left Side (MNH)Front Wheel Drive Half Shaft Replacement - Left Side (M3E)
1	Front Wheel Drive Shaft Seal Procedure Push the steering knuckle aside. NOTE: For pushing the steering knuckle aside a 2nd technician is required. For seal removal use GE-6125-1B Slide Hammer with Adapter with GE-23129 Universal Seal Remover. For seal installation use GE-8092 Driver Handle with DT-50301 Seal Installer. Special Tools DT-50301 Seal Installer GE-6125-1B Slide Hammer with Adapter GE-8092 Driver Handle GE-23129 Universal Seal Remover Equivalent regional tools:Special Tools

Callout

Component Name

Front Wheel Drive Shaft Seal
Procedure
Push the steering knuckle aside.

NOTE:

For pushing the steering knuckle aside a 2nd technician is required.
For seal removal use GE-6125-1B Slide Hammer with Adapter with GE-23129 Universal Seal Remover.
For seal installation use GE-8092 Driver Handle with DT-50301 Seal Installer.

Special Tools

Equivalent regional tools:Special Tools
