Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the control valve body cover. Refer to Control Valve Body Cover Replacement
  2. Disconnect the wiring harness connectors from the valve body's.
  3. Remove the drive motor power inverter cover. Refer to Drive Motor Power Inverter Module Cover Replacement
  4. Remove the automatic transmission wiring harness's (1, 3) from the transmission. Refer to Control Valve Assembly and Transmission Wiring Harness Removal
    Fig 1: Automatic Transmission Wiring Harness And Seals
    GM4117466Courtesy of GENERAL MOTORS COMPANY
    NOTE: Remove the manual shift detent lever spring to aid in removal of the transmission wiring harness.

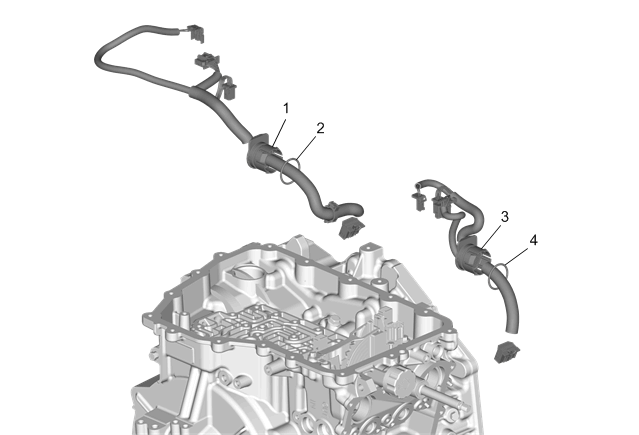

    Fig 2: Automatic Transmission Wiring Harness
    GM4037259Courtesy of GENERAL MOTORS COMPANY
