Installation Procedure
WARNING: This page is about a different variant/trim than selected.

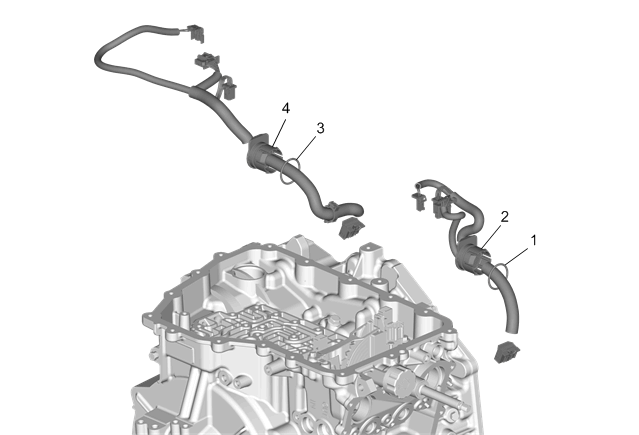

- Install the automatic transmission wiring harness's (2, 4) to the transmission. Refer to Control Valve Assembly and Transmission Wiring Harness Installation
NOTE: Install the manual shift detent lever spring previously removed to aid the removal of the transmission wiring harness.
- Connect the wiring harness connectors to the valve body's.
- Install the control valve body cover. Refer to Control Valve Body Cover Replacement
- Install the drive motor power inverter cover. Refer to Drive Motor Power Inverter Module Cover Replacement
