Variable High Clutch Removal
WARNING: This page is about a different variant/trim than selected.

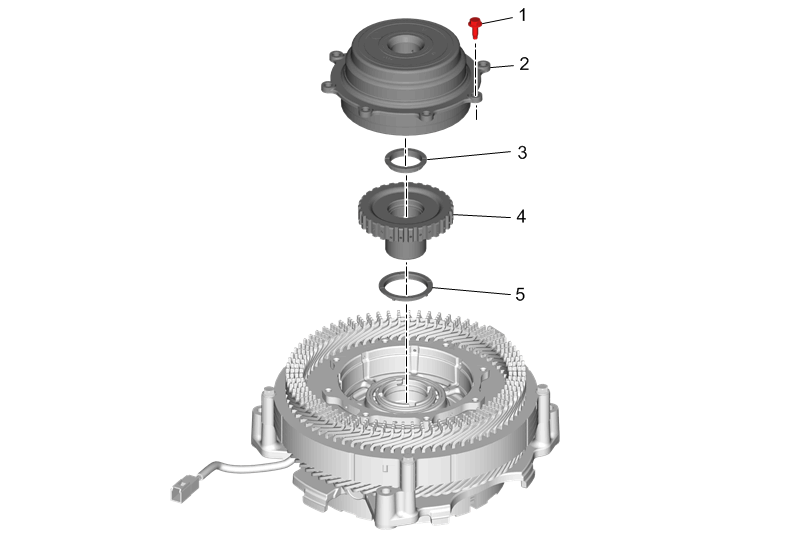

| Callout | Component Name |
|---|---|
|
CAUTION:
DO NOT contact or rest the drive motor stator on the copper end coils. Damage to the copper end coils may cause a high voltage short during vehicle operation, resulting in component damage.
|
|
| 1 | Variable High Clutch Housing Bolt [8x] |
| 2 | Variable High Clutch Housing |
| 3 | Variable High Clutch Hub Thrust Washer |
| 4 | Variable High Clutch Hub |
| 5 | Variable High Clutch Hub Thrust Washer |
