Variable High Clutch Fluid Transfer Support Seal Overhaul

WARNING: This page is about a different variant/trim than selected.

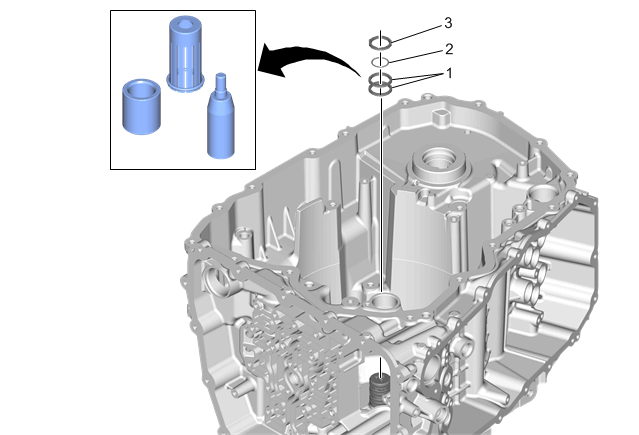

Fig 1: Variable High Clutch Fluid Transfer Support Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
CAUTION: Refer to Seal Reuse Caution .
1	Variable High Clutch Fluid Transfer Support Seal [2x] CAUTION: Size the fluid seal rings for at least 5 minutes after installation to obtain proper seal ring size. Failure to do so may cause internal transmission leaks and transmission damage. Procedure Use the DT-50911-2 pusher and adjustment screw from DT-50911-3 with DT-51700 installer to install the seals. Adjust the turn screw on the protector and install the bottom seal ring first. Use the large taper side of DT-51700 seal sizer for initial seal sizing, then flip the tool over for final sizing. Leave DT-51700 seal sizer in place until the drive motor is ready to be installed. NOTE: Use NEW seals. Special Tools DT-50911 Seal Installer DT-51700 Seal Installer For equivalent regional tools, refer to Special Tools .
2	Variable High Clutch Fluid Transfer Support Seal - O-Ring NOTE: Use a NEW seal.
3	Variable High Clutch Fluid Seal Ring NOTE: Use a NEW seal.
