Variable High Clutch Plate Removal
WARNING: This page is about a different variant/trim than selected.

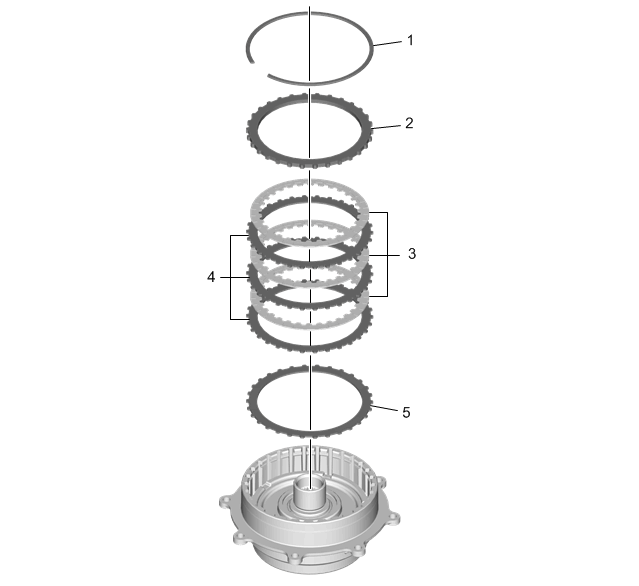

Courtesy of GENERAL MOTORS COMPANY Variable High Clutch Plate Removal
| Callout |
Component Name |
| 1 |
Variable High Clutch Backing Plate Retaining Ring |
| 2 |
Variable High Clutch Backing Plate |
| 3 |
Variable High Clutch Plate [3x] |
| 4 |
Variable High Clutch Plate [3x] |
| 5 |
Variable High Clutch Waved Plate |
