Variable High Clutch Piston Installation
WARNING: This page is about a different variant/trim than selected.
Variable High Clutch Piston Installation

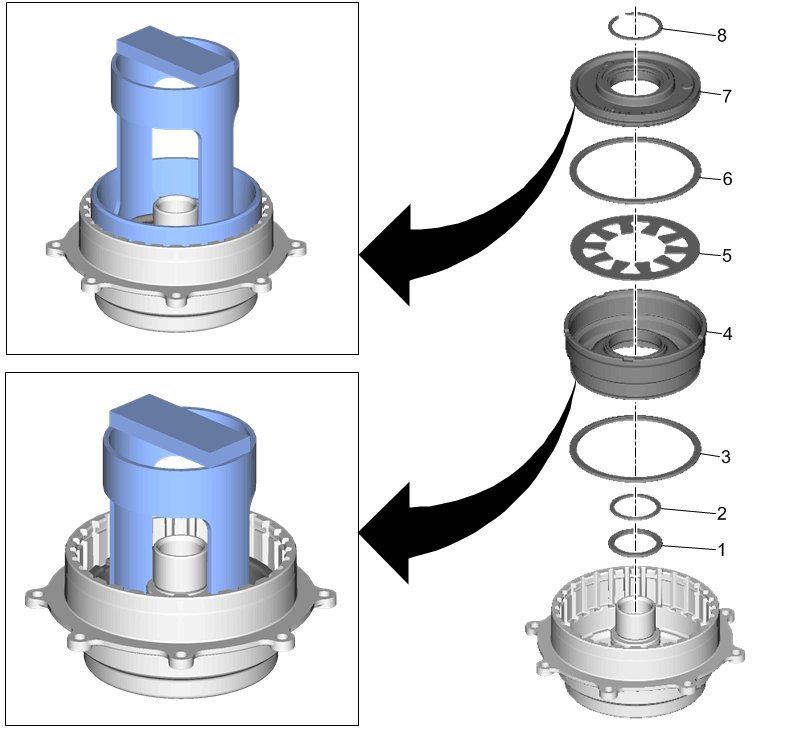

| Callout | Component Name |
|---|---|
|
CAUTION:
Refer to Seal Reuse Caution
. Preliminary Procedure Lubricate all seals with automatic transmission fluid (ATF) prior to installation. |
|
| 1 | Variable High Clutch Piston Inner Seal
NOTE:
Use a NEW seal.
|
| 2 | Variable High Clutch Piston Dam Inner Seal
NOTE:
Use a NEW seal.
|
| 3 | Variable High Clutch Piston Dam Outer Seal
NOTE:
Use a NEW seal.
|
| 4 | Variable High Clutch Piston Special Tools DT-48903 Spring Compressor For equivalent regional tools, refer to Special Tools . |
| 5 | Variable High Clutch Piston Spring |
| 6 | Variable High Clutch Piston Outer Seal
NOTE:
Use a NEW seal.
|
| 7 | Variable High Clutch Piston Dam Special Tools
For equivalent regional tools, refer to Special Tools . |
| 8 | Variable High Clutch Piston Dam Retaining Ring
CAUTION:
Refer to Retaining Ring Reuse Caution
. Procedure Use a press and DT-48903 compressor against the variable high clutch piston dam to install the retaining ring.
NOTE:
DO NOT exceed 5.0 mm (0.20 in) of travel below the snap ring groove when compressing the variable high clutch piston dam.
NOTE:
Use a NEW retaining ring. Special Tools DT-48903 Spring Compressor For equivalent regional tools, refer to Special Tools . |
