Transmission Case Inspection (1 of 2)
WARNING: This page is about a different variant/trim than selected.
Transmission Case Inspection (1 of 2)

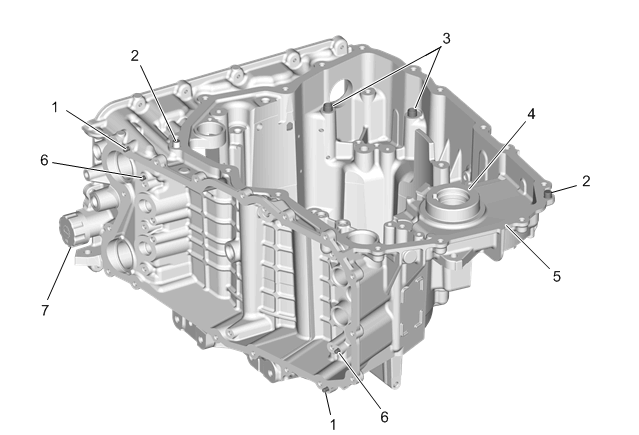

| Callout | Component Name |
|---|---|
|
CAUTION:
Do not use abrasive pads or bristle devices to clean the sealing surfaces. Abrasive pads produce a fine grit that can effect transmission function. Abrasive pads can also remove enough metal to create oil leaks.
CAUTION:
After cleaning the transmission components, allow to air dry. Do not use cloth or paper towels in order to dry any transmission components. Lint from the towels can cause component failure.
CAUTION:
Do not reuse cleaning solvents. Previously used solvents may deposit sediment which may damage the component.
Preliminary Procedures
|
|
| 1 | Drive Motor Power Inverter Module Cover Pin |
| 2 | Transmission Case Locating Pin |
| 3 | Automatic Transmission Fluid Pump Locating Pin |
| 4 | Driven Sprocket Bearing Mating Surface |
| 5 | Transmission Case to Torque Dampener and Differential Housing Sealing Surface |
| 6 | Drive Motor Power Inverter Module Pin |
| 7 | Transmission Fluid Filler Cap |
