Manual Shift Shaft Seal Removal

WARNING: This page is about a different variant/trim than selected.

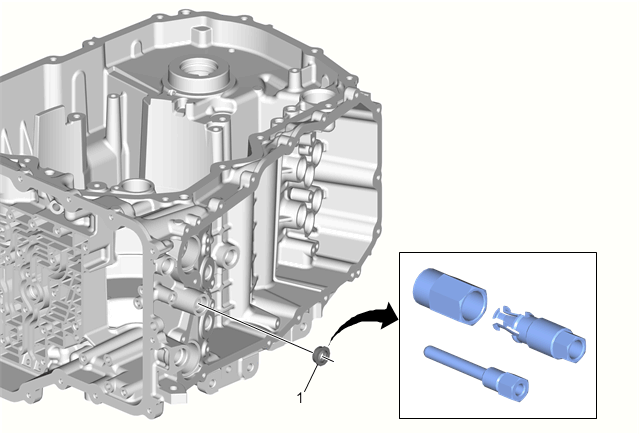

Fig 1: Manual Shift Shaft Seal
GM4051646Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Manual Shift Shaft Seal
Special Tools
DT-45201  Seal Remover
For equivalent regional tools, refer to Special Tools .
