Automatic Transmission Wiring Harness Bracket Removal

WARNING: This page is about a different variant/trim than selected.

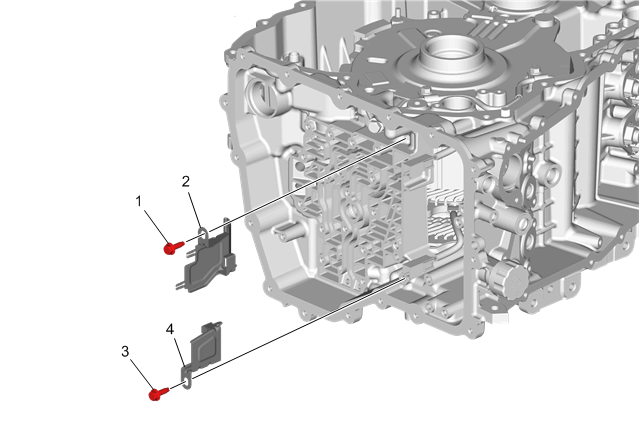

Fig 1: Automatic Transmission Wiring Harness Bracket
GM4037342Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Wiring Harness Bracket Removal

Callout Component Name
Preliminary Procedure
Remove the drive motor wiring harness connectors from the wiring harness connector brackets.
1 Automatic Transmission Wiring Harness Connector Bracket Bolt [1x]
2 Automatic Transmission Wiring Harness Bracket
3 Automatic Transmission Wiring Harness Connector Bracket Bolt [1x]
4 Automatic Transmission Wiring Harness Bracket
