Input Shaft Seal Installation

WARNING: This page is about a different variant/trim than selected.

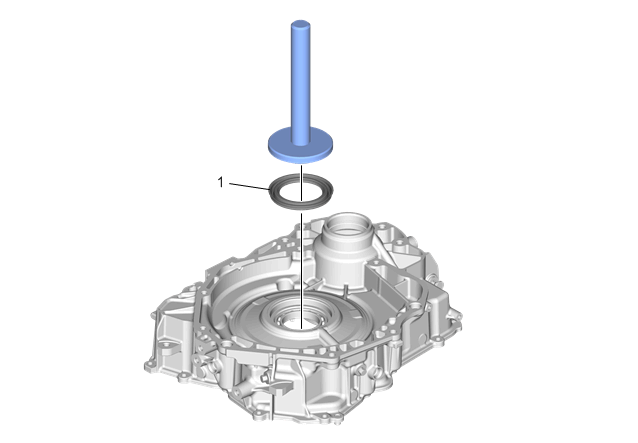

Fig 1: Input Shaft Seal
GM4051476Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Input Shaft Seal

Special Tools

  • DT-8092  Drive Handle
  • DT-51622  Seal Installer

For equivalent regional tools, refer to Special Tools .
