Input Shaft Bearing Installation

WARNING: This page is about a different variant/trim than selected.

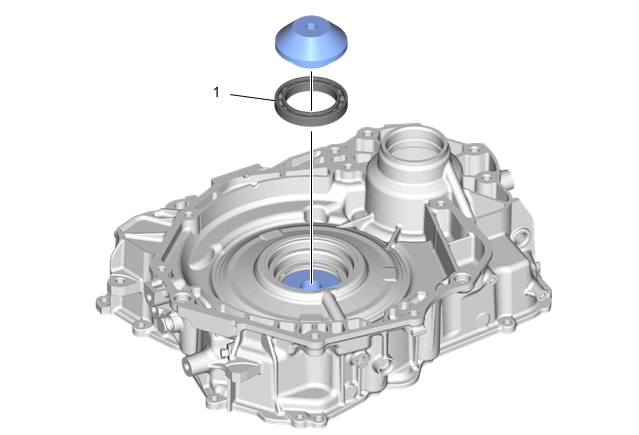

Fig 1: Input Shaft Bearing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Input Shaft Bearing Procedure Use DT-48008 support with the small shoulder facing up to support the housing while using DT-51625-1 installer and a press to install the bearing. Special Tools DT-48008 Press Support/Pinion Bearing Installer DT-51625-1 Bearing Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Input Shaft Bearing
Procedure
Use DT-48008 support with the small shoulder facing up to support the housing while using DT-51625-1 installer and a press to install the bearing.

Special Tools

DT-48008 Press Support/Pinion Bearing Installer
DT-51625-1 Bearing Installer

For equivalent regional tools, refer to Special Tools .
