Automatic Transmission Torque Limit Clutch
WARNING: This page is about a different variant/trim than selected.

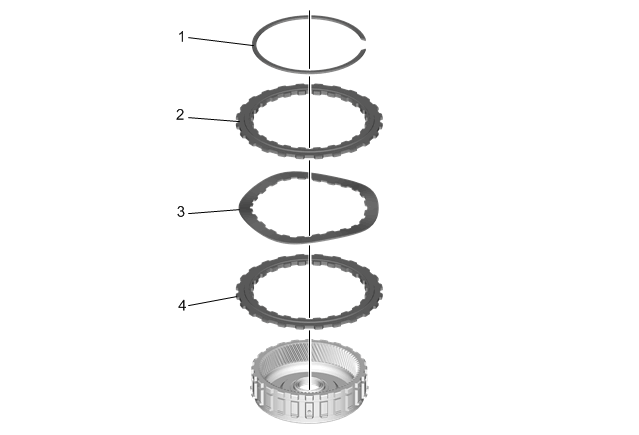

Courtesy of GENERAL MOTORS COMPANY Automatic Transmission Torque Limit Clutch
| Callout |
Component Name |
| 1 |
Automatic Transmission Torque Limit Clutch Backing Plate Ring |
| 2 |
Automatic Transmission Torque Limit Clutch Backing Plate |
| 3 |
Automatic Transmission Torque Limit Clutch Spring |
| 4 |
Automatic Transmission Torque Limit Clutch Backing Plate |
