Holding Fixture Installation

WARNING: This page is about a different variant/trim than selected.

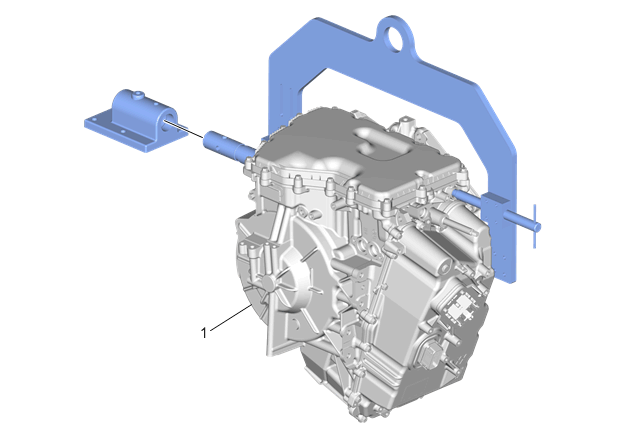

Fig 1: Holding Fixture Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transmission Case WARNING: Handle with care, the transmission assembly weighs over 183 Kg (403 lbs). Bodily injury could occur if not handled properly. CAUTION: Refer to Fastener Caution . Procedure Use the supplied template to relocate holes on the fixture for mounting blocks. Adjust mounting blocks on DT-46625 Holding Fixture to match bosses on case and tighten to 13 N.m (115 lb in). Special Tools DT-03289-20 Holding Fixture Base Assembly DT-46625 Holding Fixture DT-46625-20 Holding Fixture Adapters For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Transmission Case

WARNING: Handle with care, the transmission assembly weighs over 183 Kg (403 lbs). Bodily injury could occur if not handled properly.

CAUTION: Refer to Fastener Caution .

Procedure

Use the supplied template to relocate holes on the fixture for mounting blocks.
Adjust mounting blocks on DT-46625 Holding Fixture to match bosses on case and tighten to 13 N.m (115 lb in).

Special Tools

For equivalent regional tools, refer to Special Tools .
