Front Wheel Drive Shaft Oil Seal Installation - Left Side

WARNING: This page is about a different variant/trim than selected.

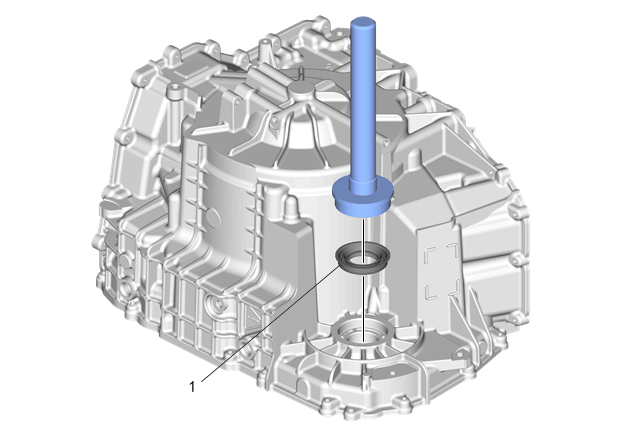

Fig 1: Front Wheel Drive Shaft Oil Seal - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Wheel Drive Shaft Oil Seal Special Tools DT-46629-A Axle Seal Installer GE-8092 Driver Handle For equivalent regional tools, refer to Special Tools .
