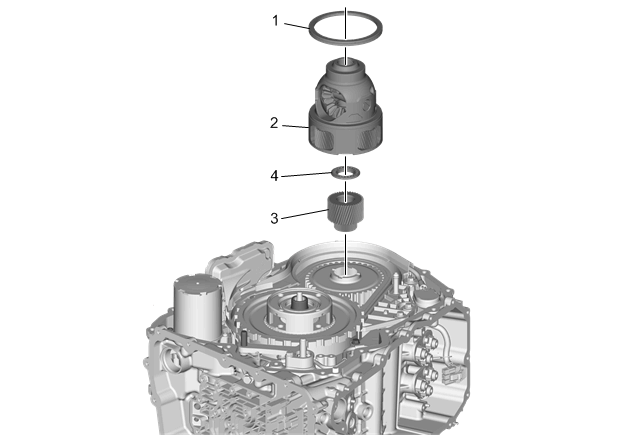

Front Differential Carrier Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
Front Differential Carrier Bearing |
| 2 |
Front Differential Carrier |
| 3 |
Front Differential Carrier Sun Gear |
| 4 |
Differential Carrier Sun Gear Thrust Bearing |
