Front Differential Carrier Final Rotational Torque Measurement
WARNING: This page is about a different variant/trim than selected.

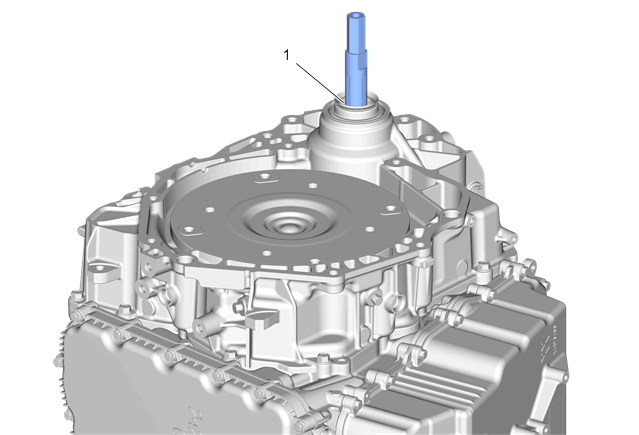

| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Procedure Use a dial or beam torque wrench with DT-49938 Differential Rotating Tool to measure turning torque. The rotational torque should be below 7.45 (65.94 lb in) Special Tools DT-49938 Differential Rotating Tool For equivalent regional tools, refer to Special Tools . |
