Drive Sprocket, Driven Sprocket and Drive Link Removal
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY

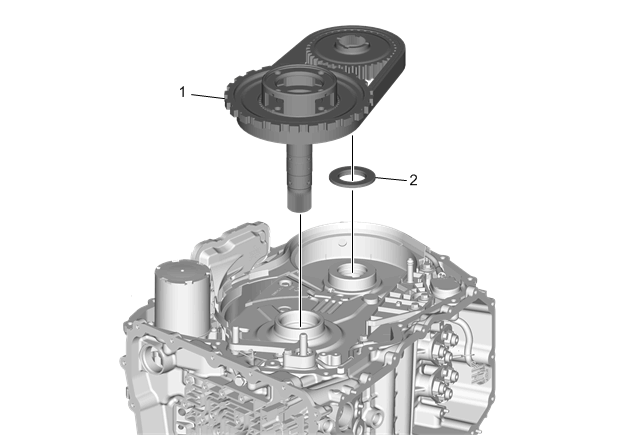

| Callout |
Component Name |
| 1 |
Drive Sprocket, Driven Sprocket and Drive Link
NOTE:
Inspect the bearing that is pressed into the driven sprocket. If the bearing is loose, replace the driven sprocket.
|
| 2 |
Driven Sprocket Bearing |
