Drive Motor Stator Cooling Tube Removal
WARNING: This page is about a different variant/trim than selected.
Drive Motor Stator Cooling Tube Removal

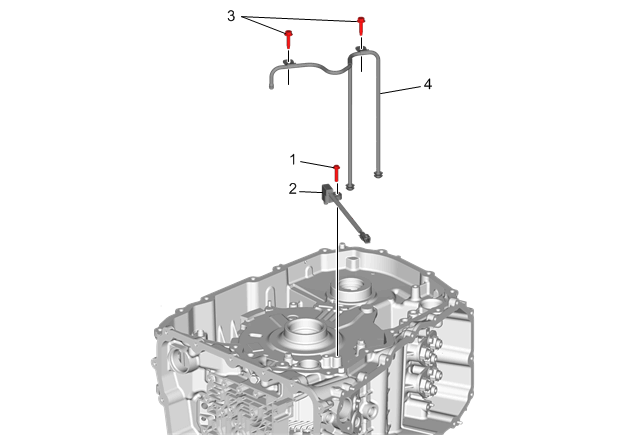

| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Output Speed Sensor Bolt |
| 2 | Automatic Transmission Output Speed Sensor |
| 3 | Drive Motor Stator Cooling Tube Bolt [2x]
NOTE:
A plastic washer is used on the bolts during initial assembly. These washers may come loose after bolt removal. Ensure that the washers do not drop into the transmission case. Discard the washers.
|
| 4 | Drive Motor Stator Cooling Tube |
